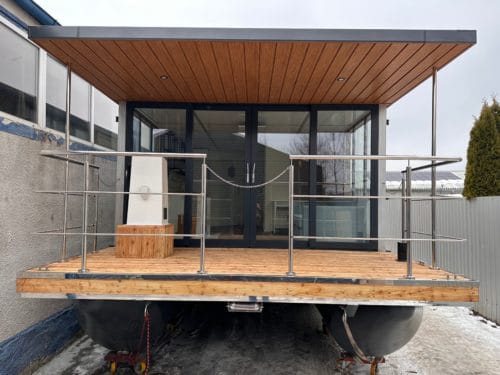

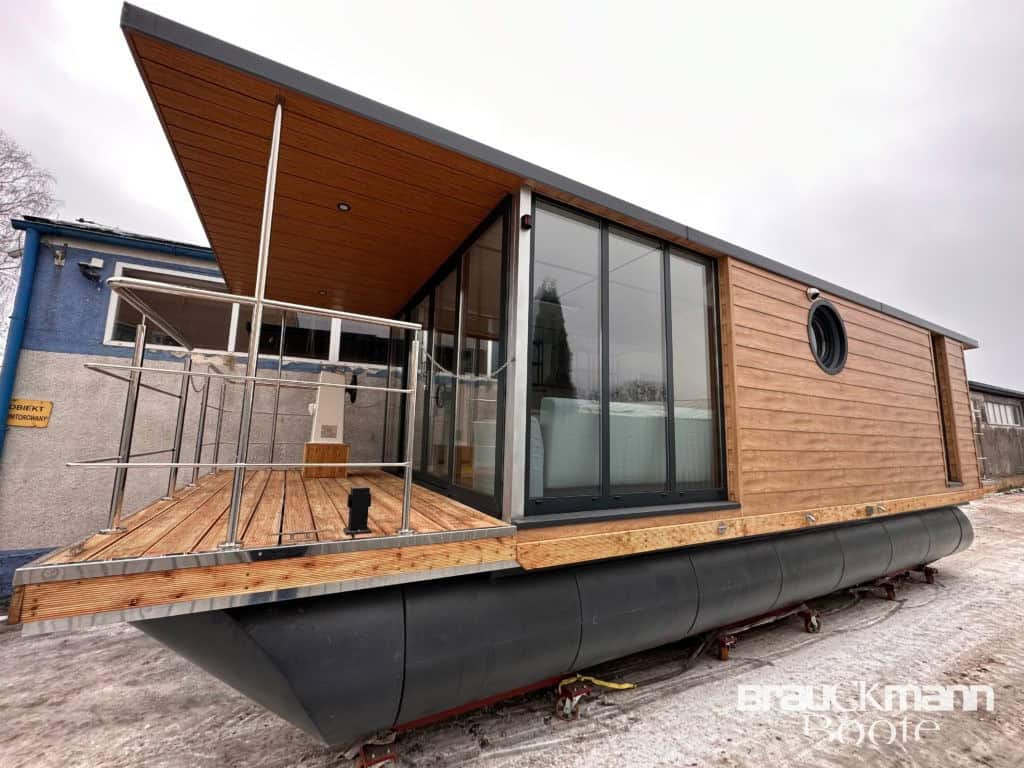

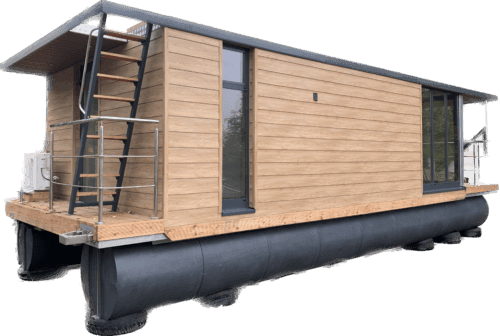

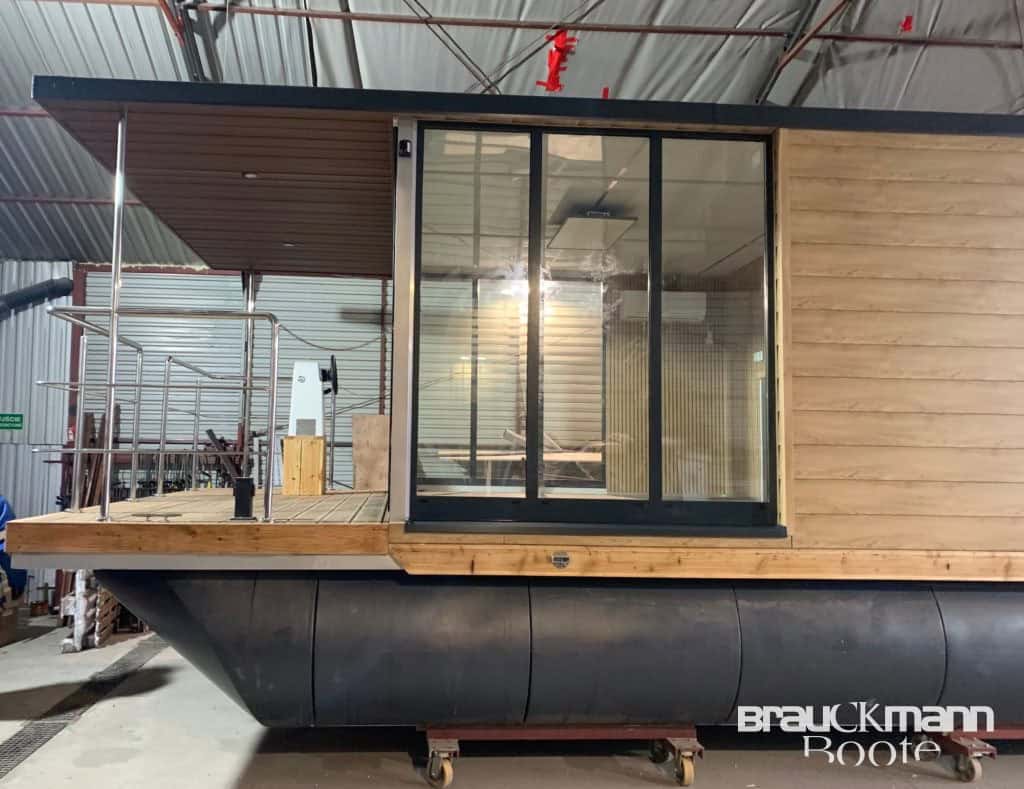

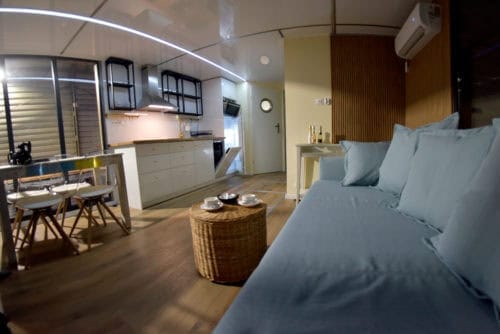

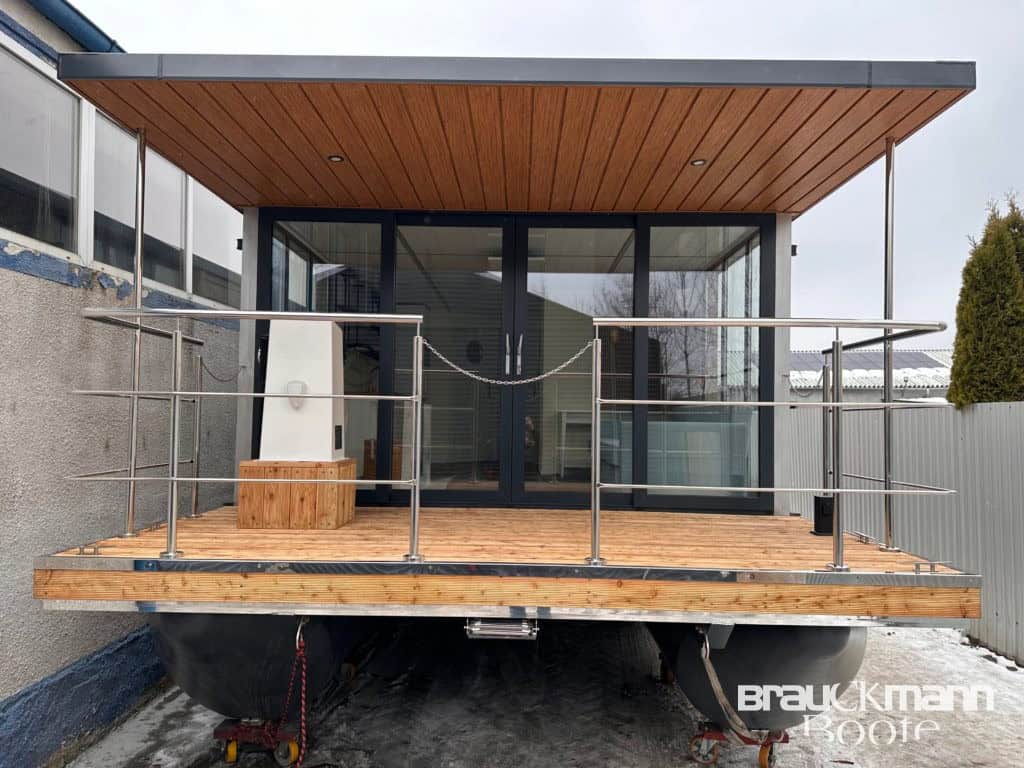

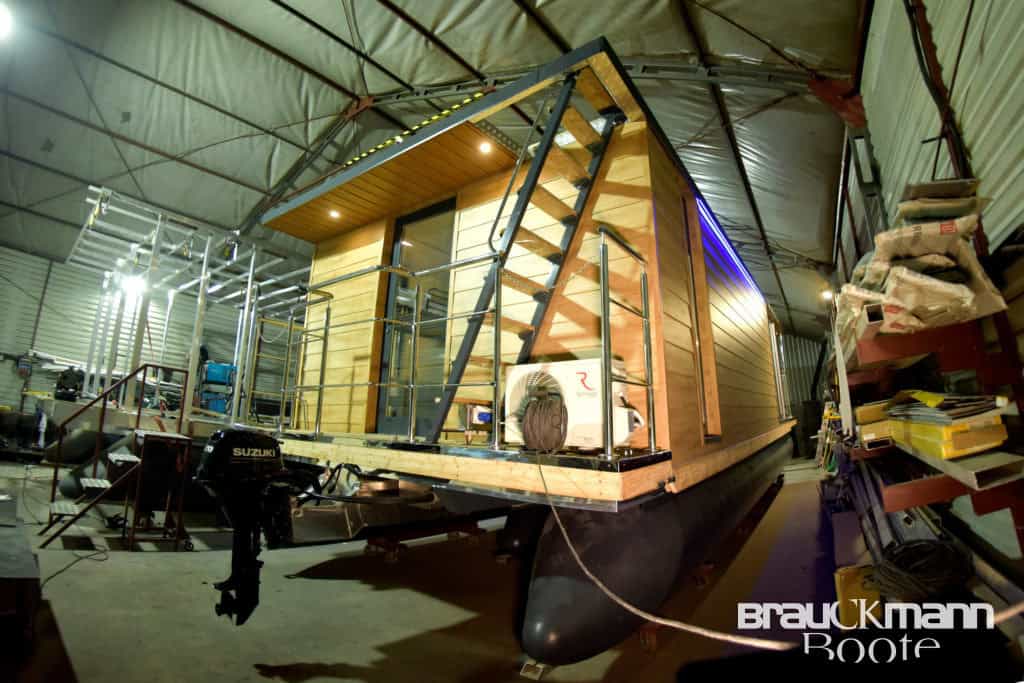

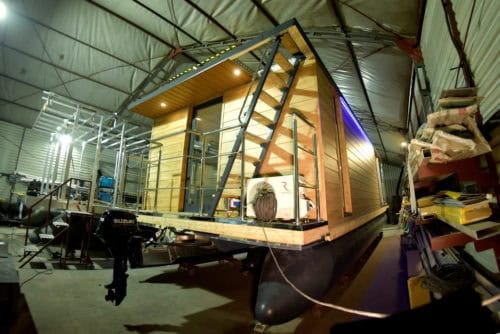

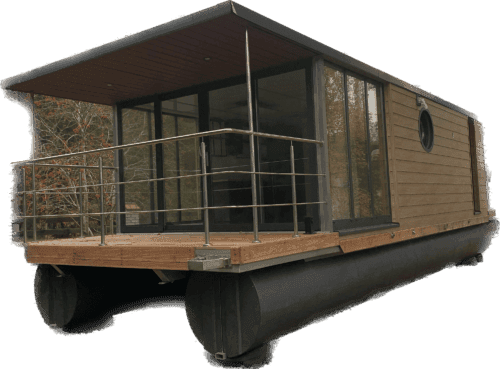

LAKESTAR 1000 ist eine neue Linie von Hausbooten, die in einer schwimmenden und stationären Version zu finden sind. Es ist ein innovatives Gerät mit einzigartigem Design. Für den Bau wurden die hochwertigsten Materialien verwendet. Ausgezeichnetes Innendesign mit einem oder zwei Schlafzimmern. Eine geräumige Terrasse im Bugteil und eine große Nutzterrasse auf dem Dach machen das Hausboot perfekt für ein Paar oder die ganze Familie für einen langen Urlaub oder Wochenendausflüge mit Freunden in der Natur. Für kühle Abende verfügt LAKESTAR 1000 über 3 Heizungsarten und eine Klimaanlage für heiße Sommertage. Darüber hinaus verfügt es über ein großes Badezimmer mit Dusche, Waschbecken und Toilette mit Zerhacker. Sie können eine Reihe zusätzlicher Optionen bestellen, wie z. B.: Photovoltaikmodule, Backofen, Geschirrspüler, Betten, Sofas, Tisch mit Stühlen, zusätzliche Schränke, Elektroantrieb usw.

TECHNICAL SPECIFICATIONS:

LENGTH - 10.5 m

WIDTH - 4m

HEIGHT - 3.2 m

TOTAL HEIGHT WITH BARRIERS - 4.2 m

DRAFT - 0.6

OWN WEIGHT - 8000kg

OUTBOARD ENGINE - max. 60KM

MAXIMUM NUMBER OF PEOPLE - 12

DESIGN CATEGORY - D

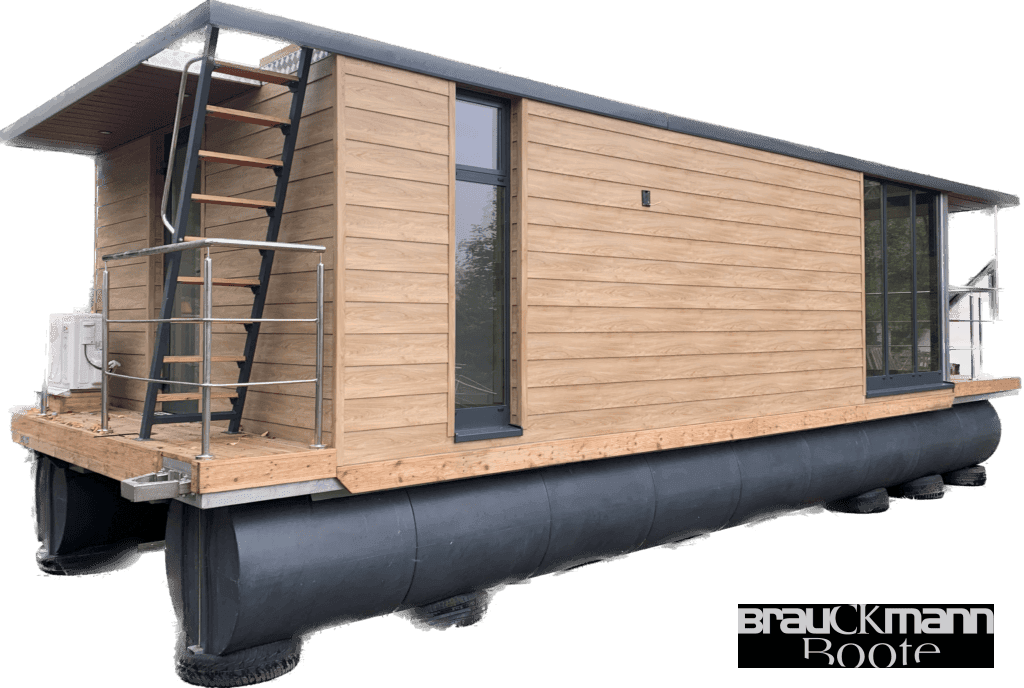

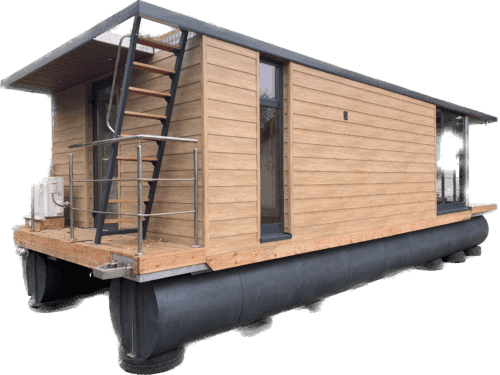

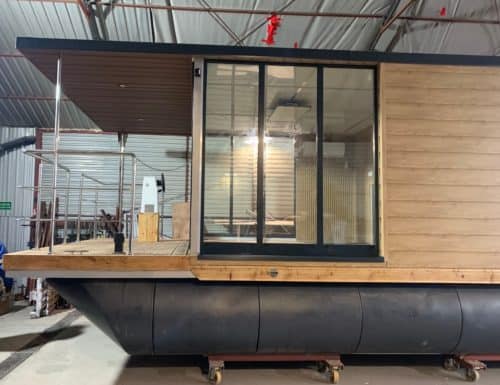

HULL :

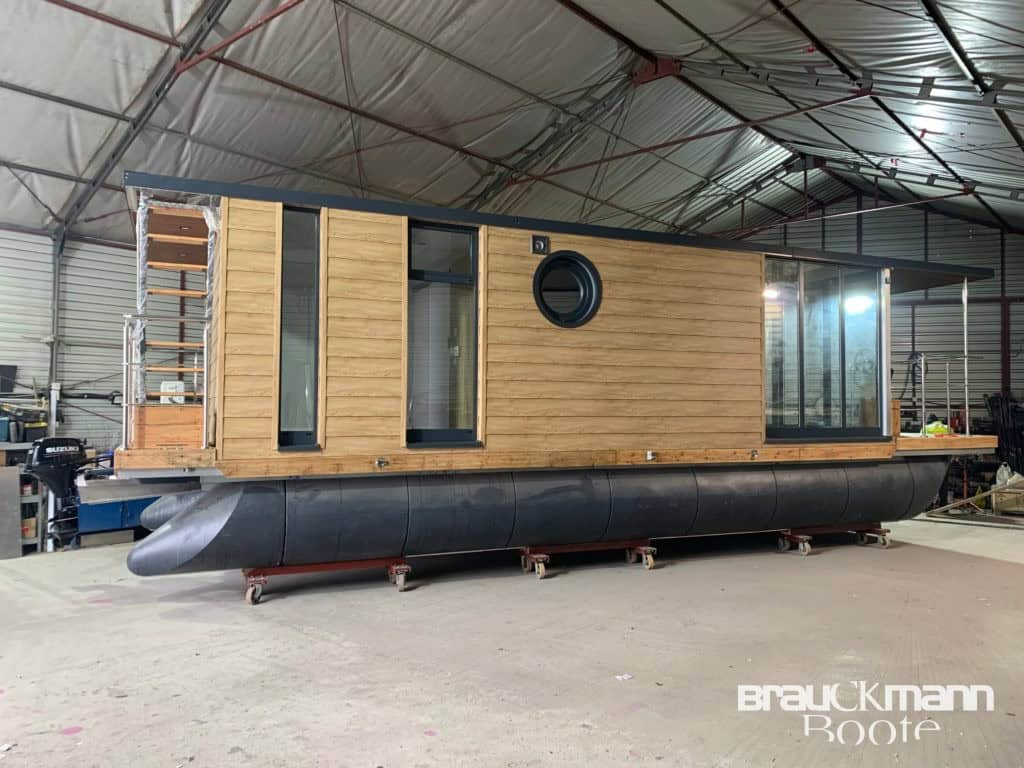

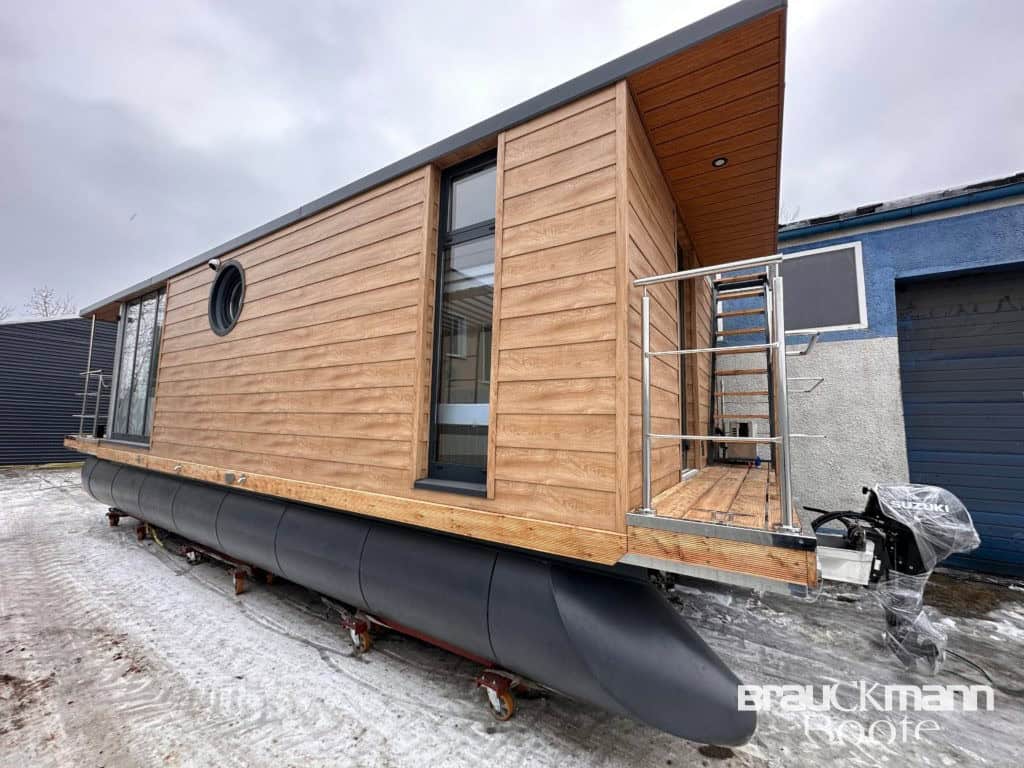

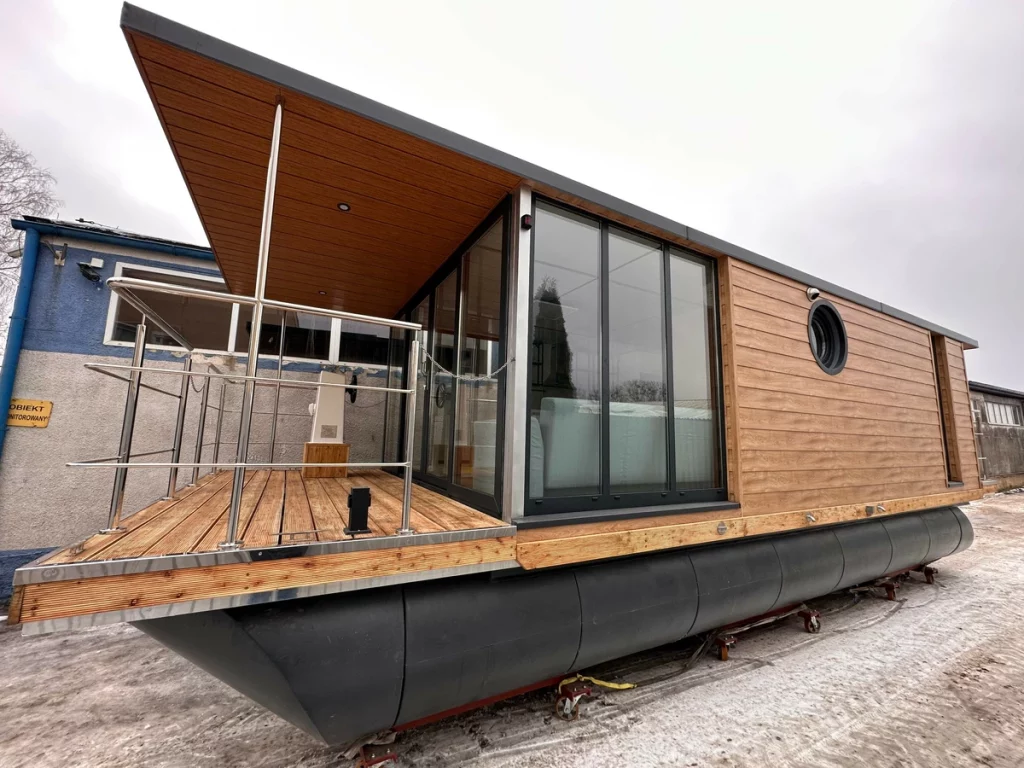

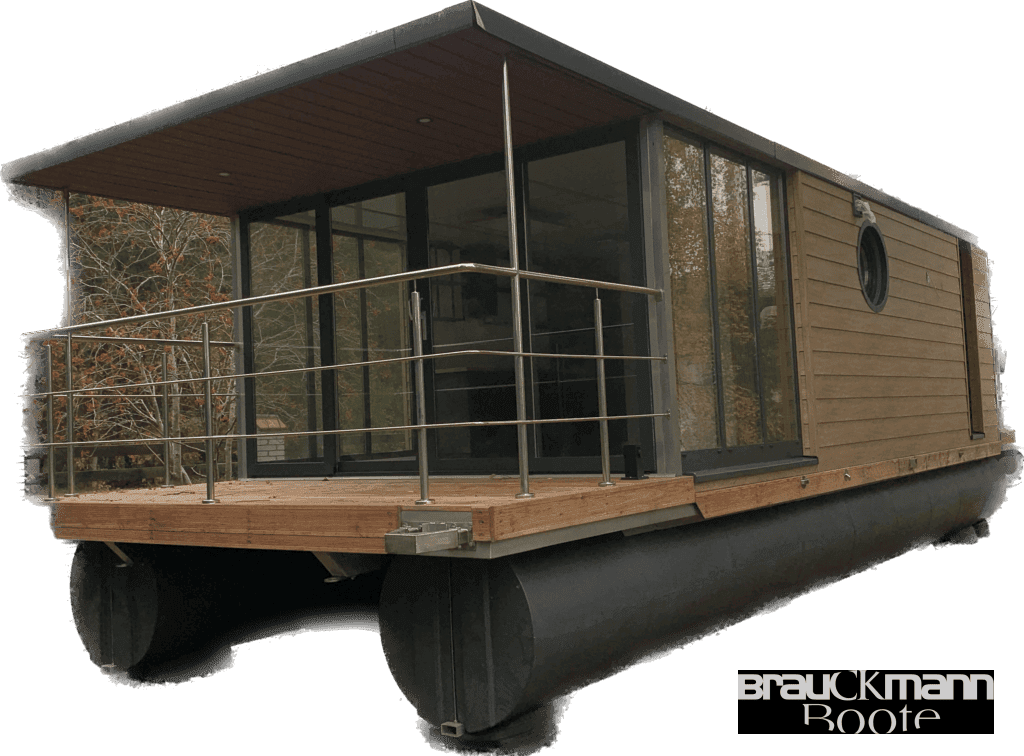

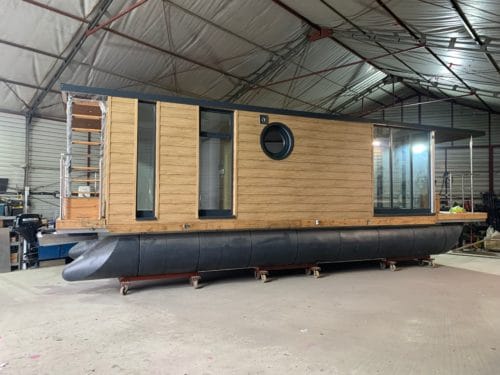

Model "D" hull made of aluminum or polyethylene all-season floats. The shape of the floats and the design ensure the load-bearing capacity of the structure and high stability. As a result - comfort of use (no heeling) and safety, and the cross-section ensures high initial displacement and a very good weight to displacement ratio, which allows for use in shallow waters due to small draft. The frame is made entirely of aluminum profiles.



GLASSES AND DOORS:

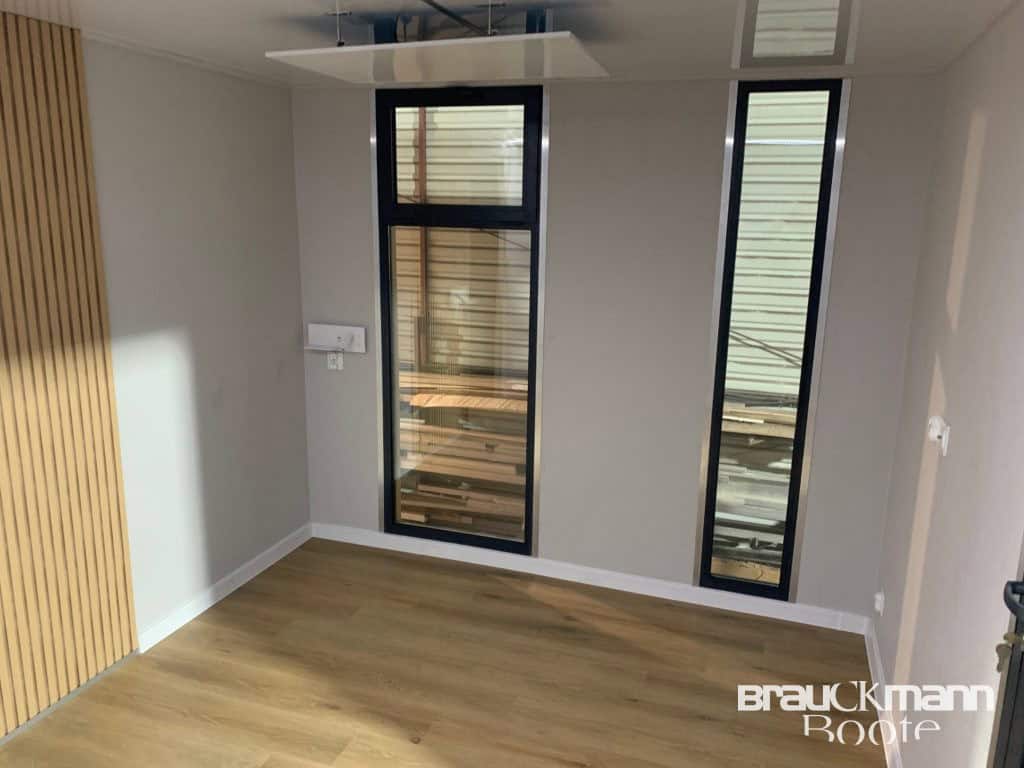

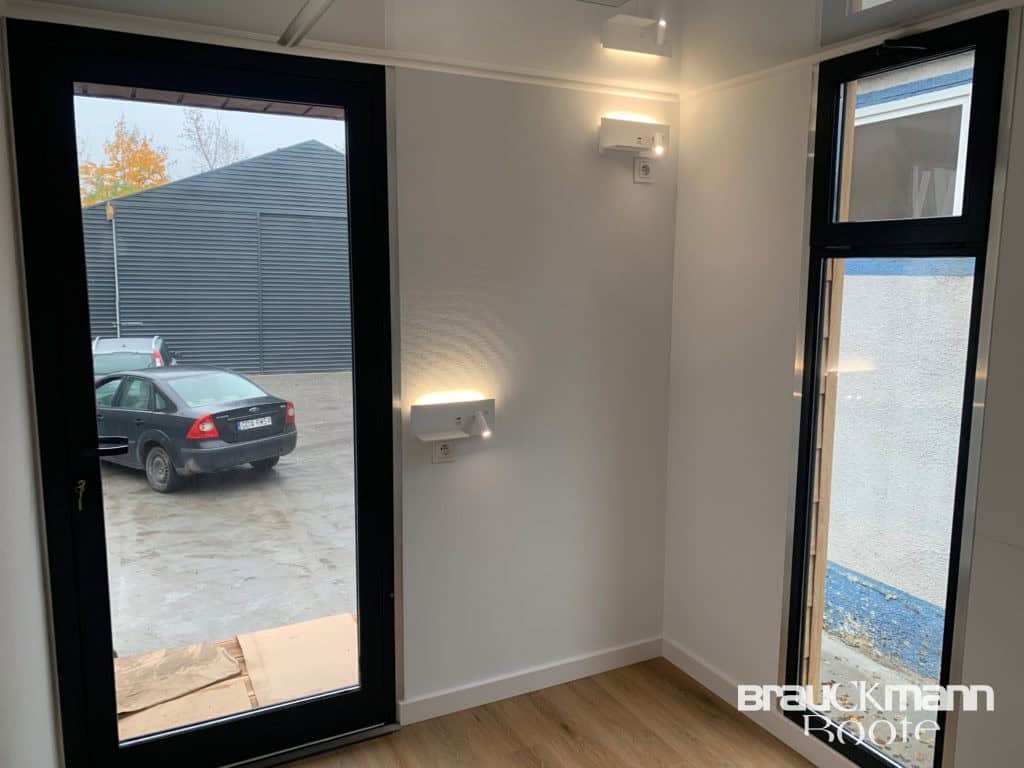

Windows, rear doors and front double/sliding doors are made of double safety glass in a color aluminum frame.



DEVELOPMENT:

Deck made of 15 mm thick waterproof plywood. The walls and roof are a lightweight structure made entirely of composite panels and plywood. The thermal insulation of the roof and walls is made of polyurethane foam and 8 cm thick polystyrene. The floor insulation is mineral wool with a thermal conductivity coefficient of Λ 0.030 W/mK and a thickness of 25 cm. The terraces are covered with a composite board or a Siberian larch board.



BASIC EQUIPMENT:

FLOATS - polyethylene

FRAME - aluminum

WATER TANK - 860l + indicator

FECAL TANK - 860l + indicator + pump

FLOOR:

Inner - rigid vinyl panels (100% waterproof and non-slip)

External - terrace board / Siberian larch

WALLS: spray-painted with modern structural paint enriched with flakes in a color to choose from, does not crack, waterproof, easy to clean, resistant to scratches and chips

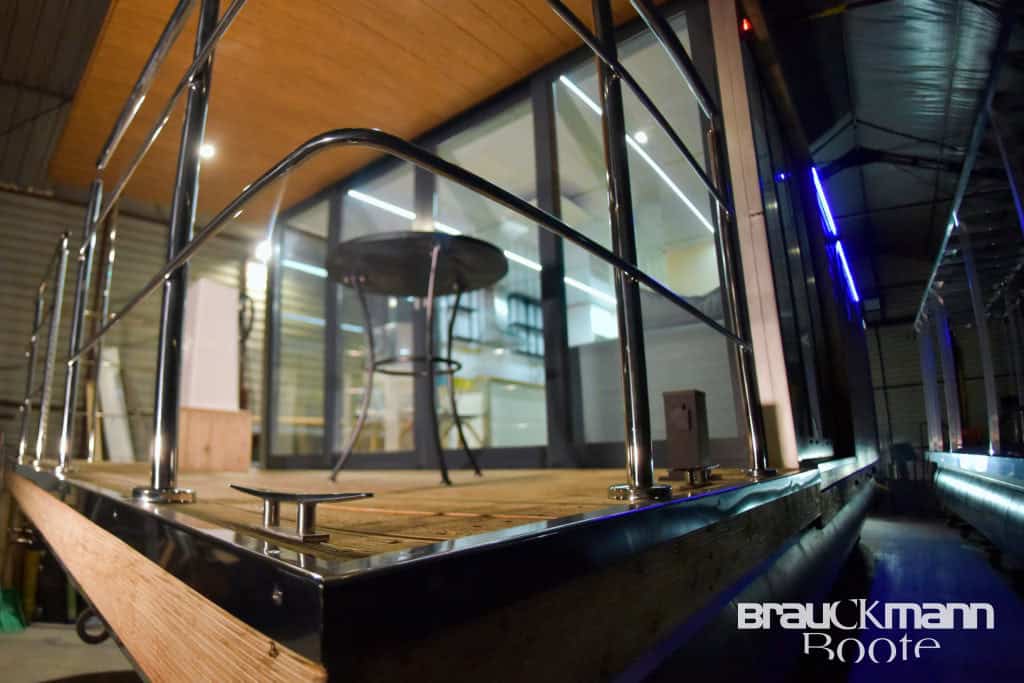

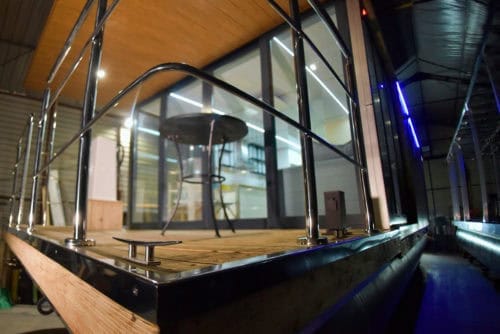

RAILINGS: stainless steel 304, fi 40, height 1.04 mLIGHTING:External - LED spotlights, stern/bow roofInternal - LED strips, warm or cold white

PORT SOCKET

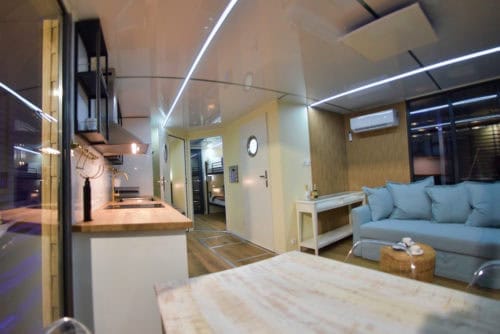

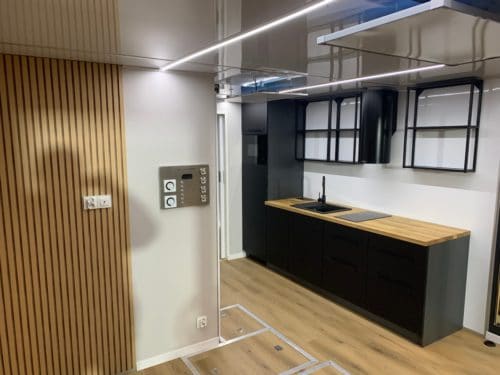

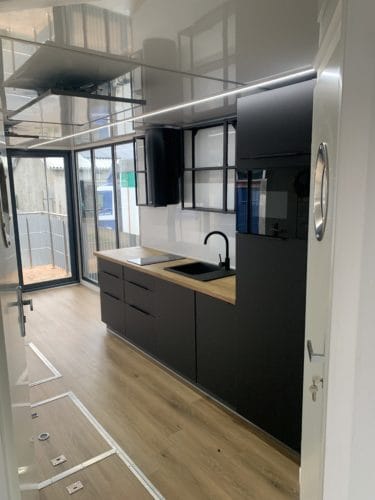

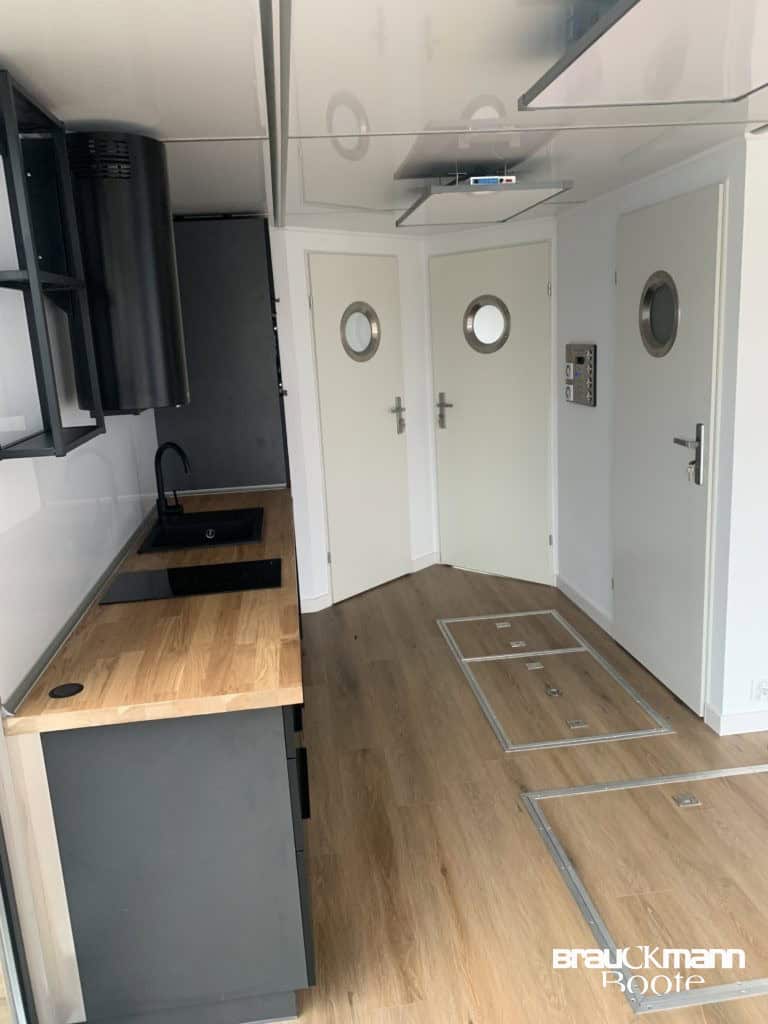

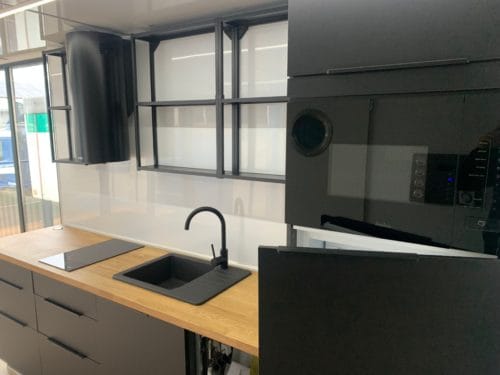

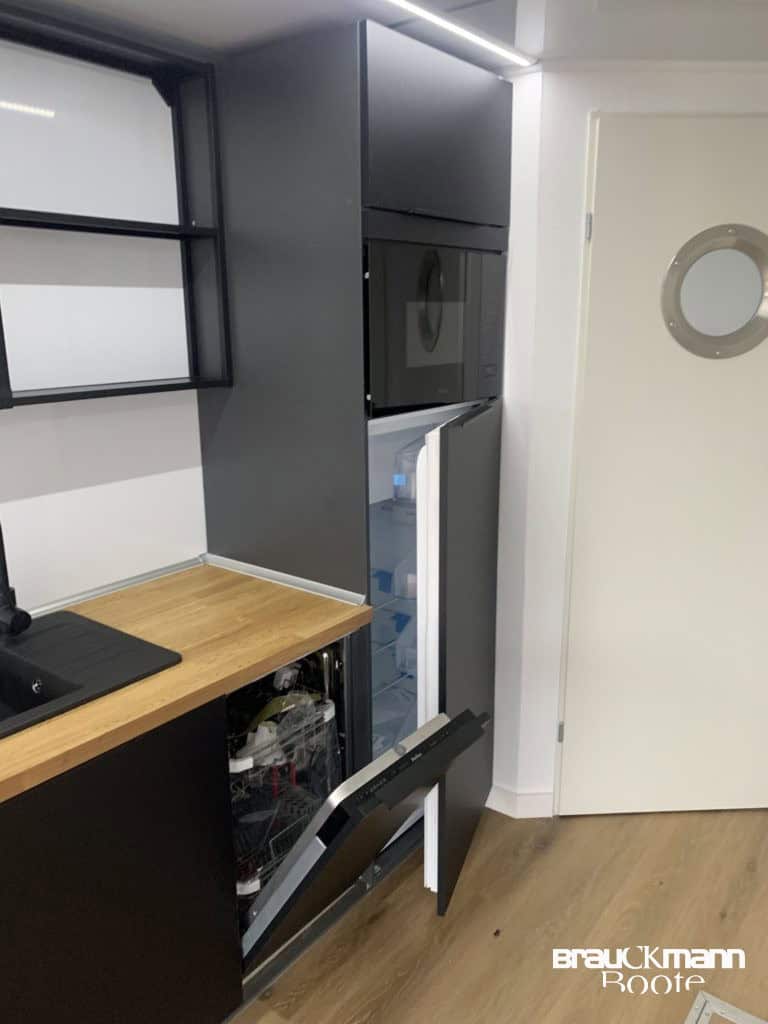

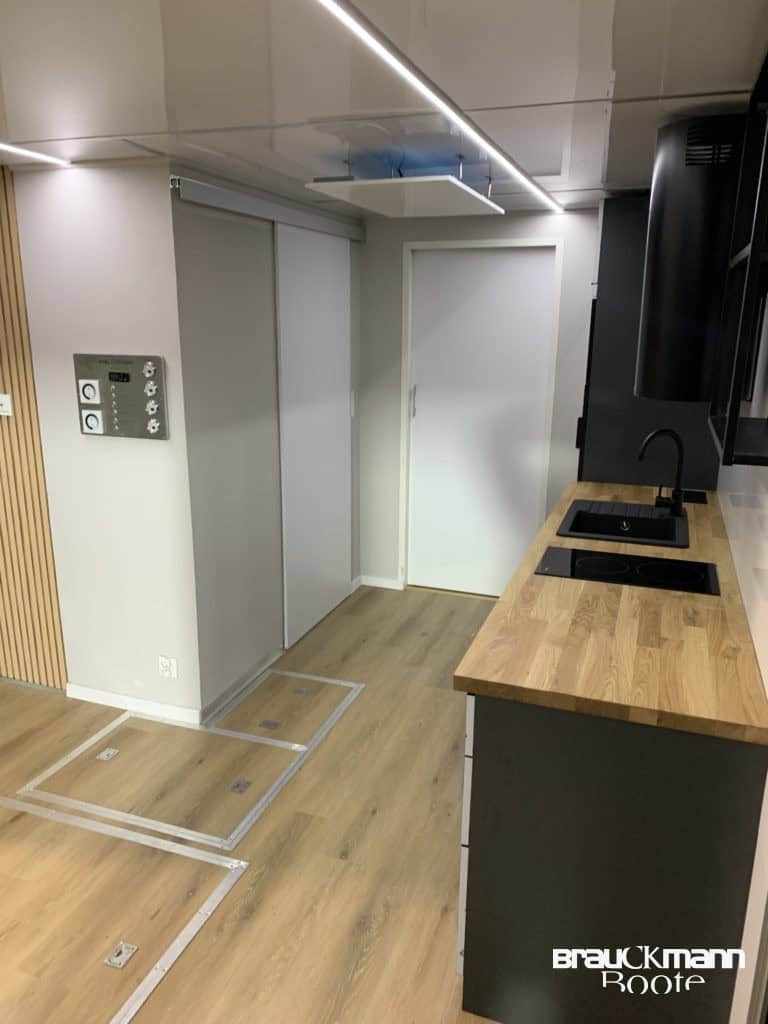

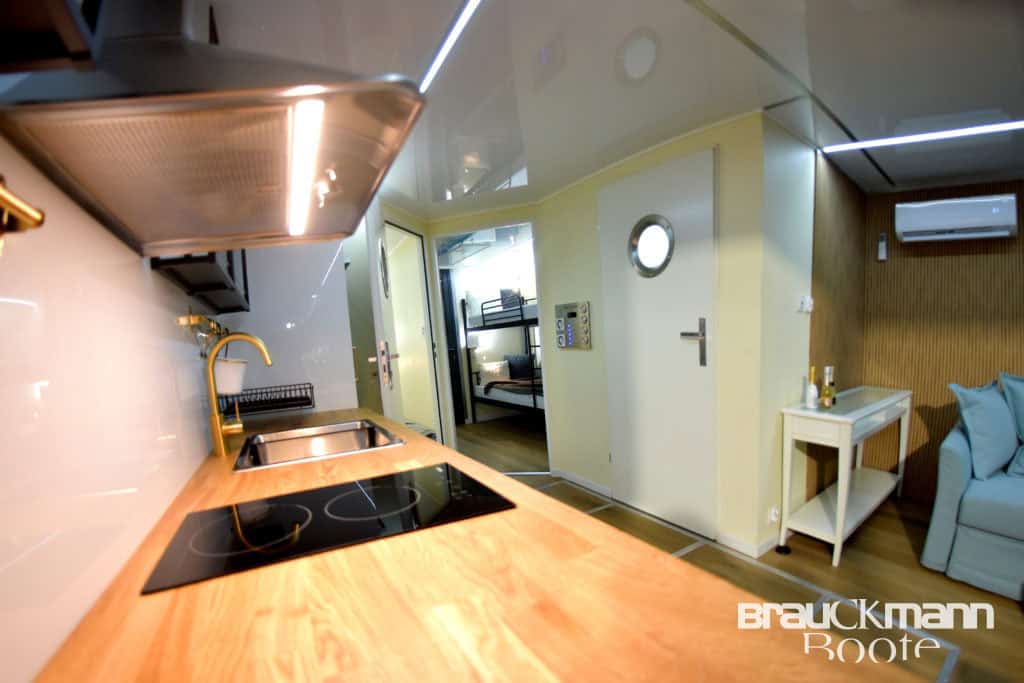

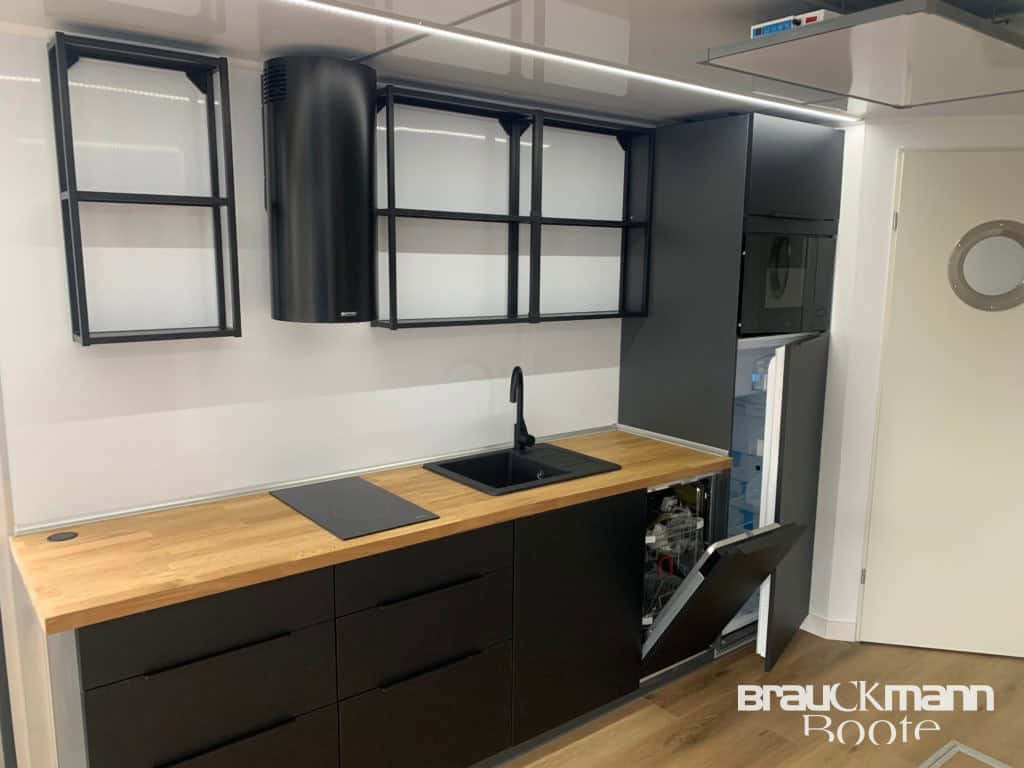

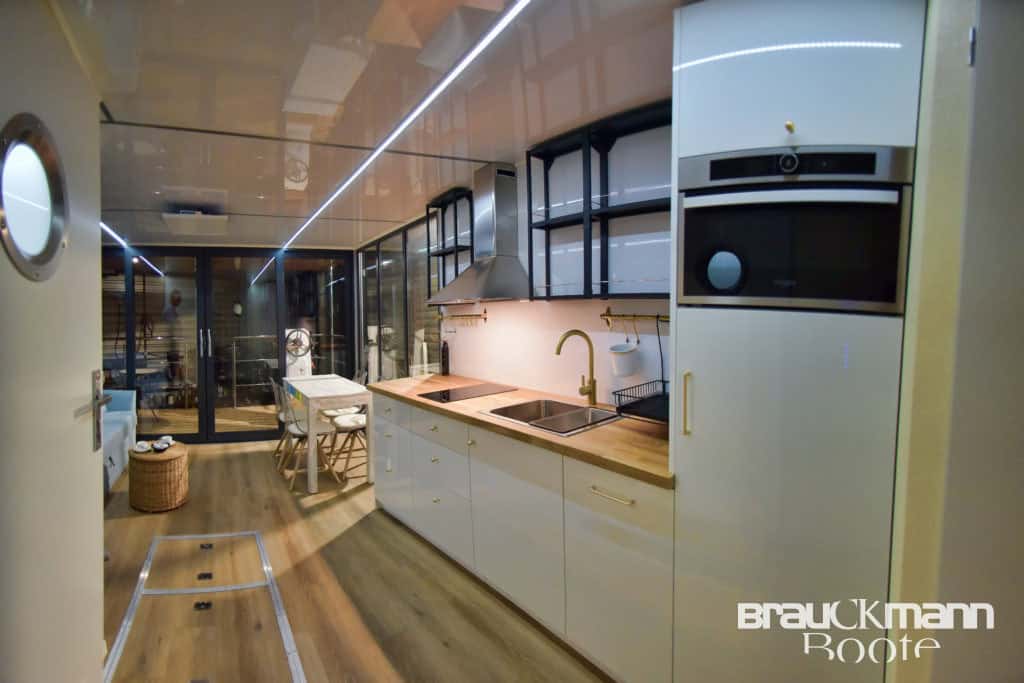

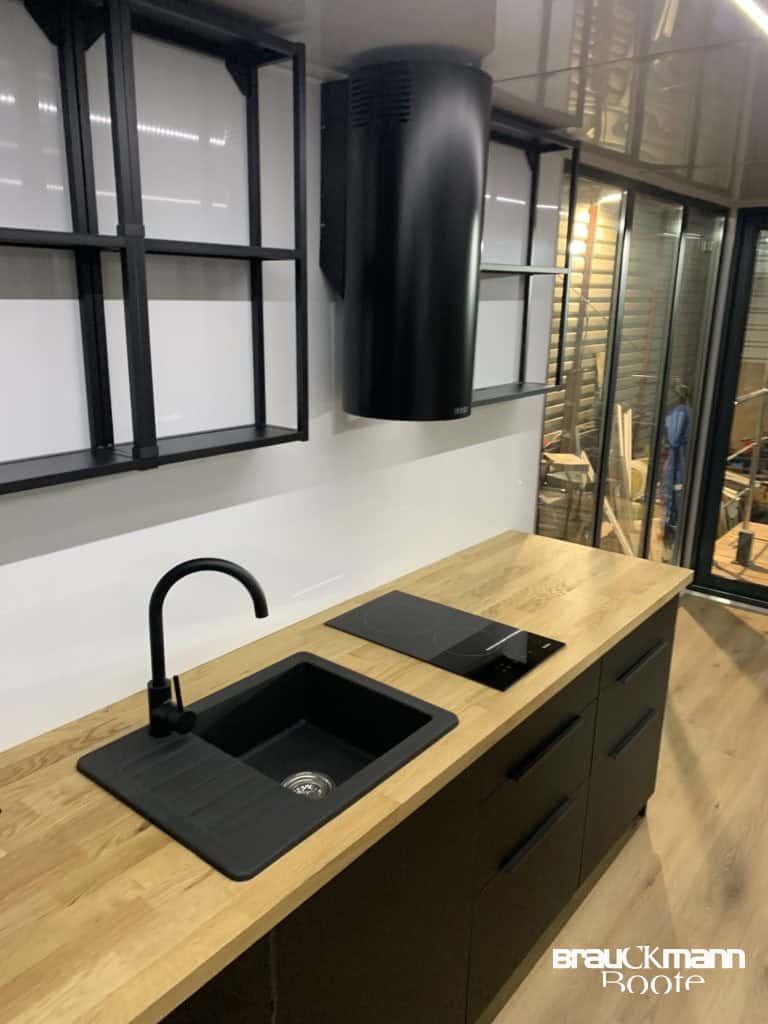

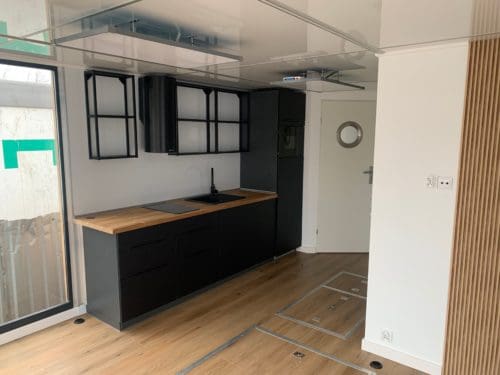

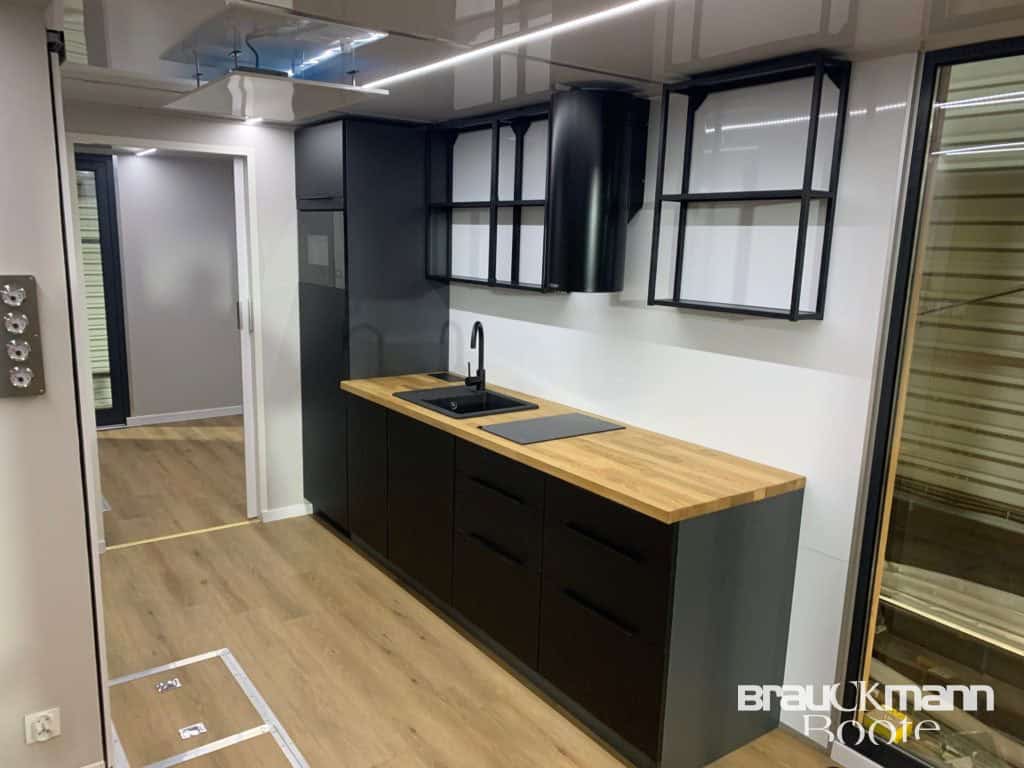

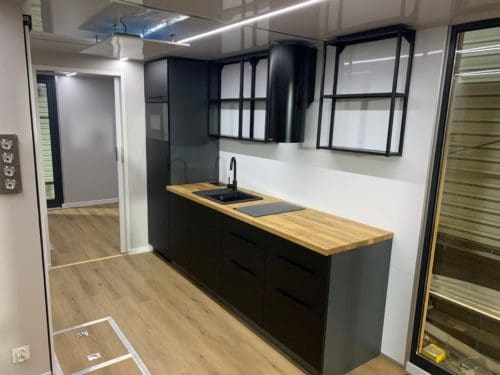

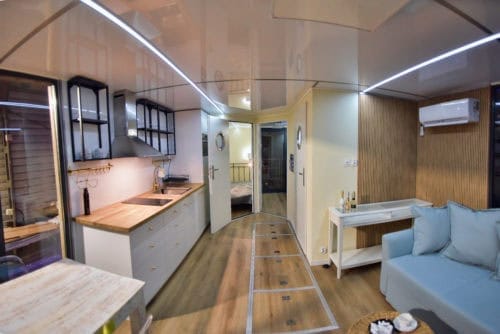

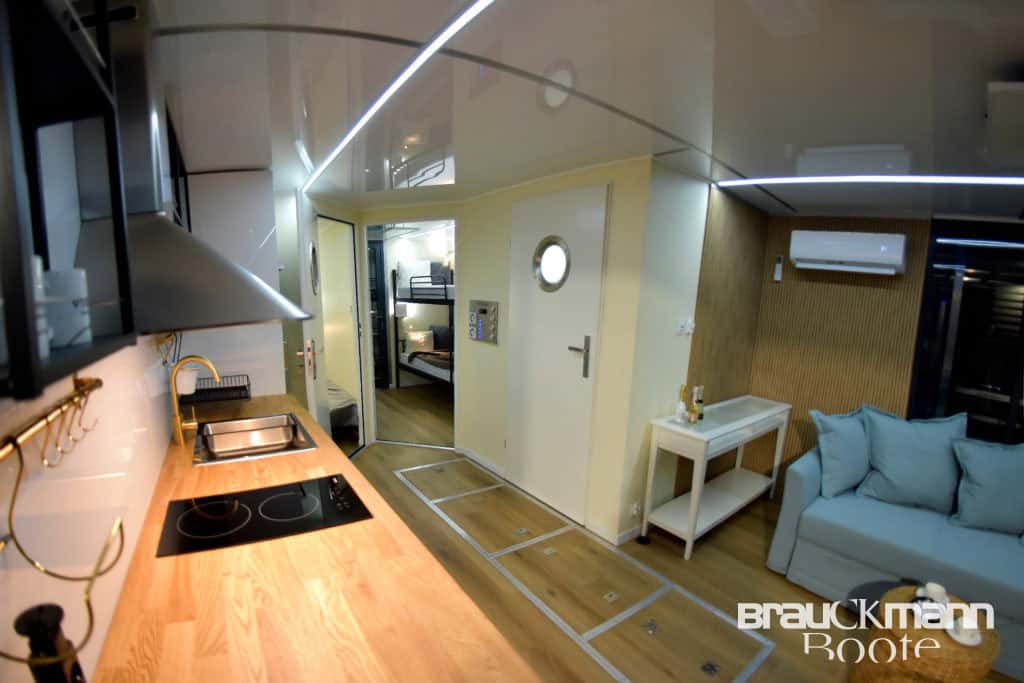

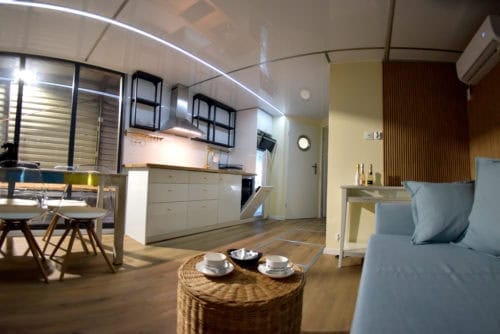

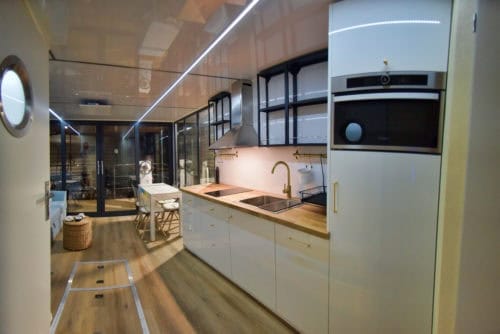

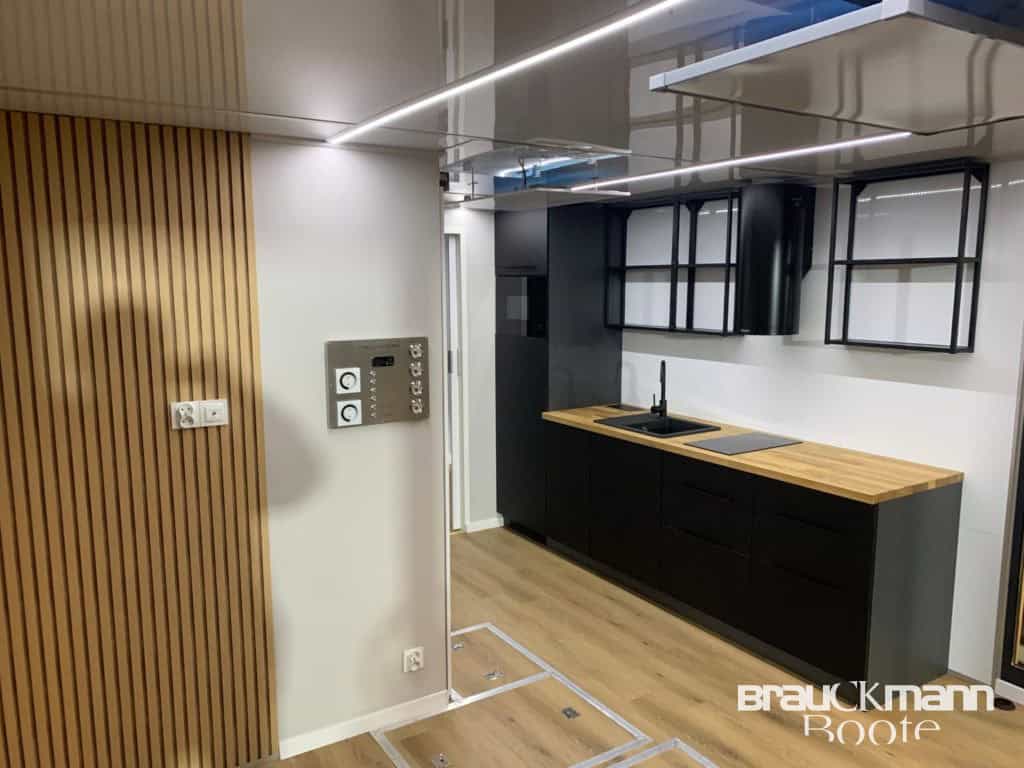

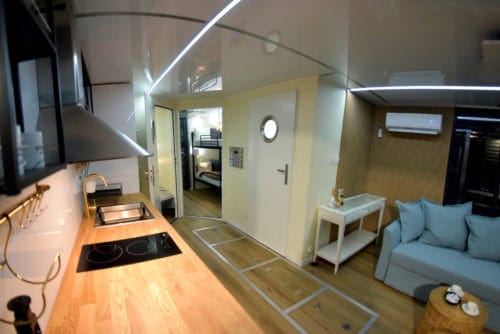

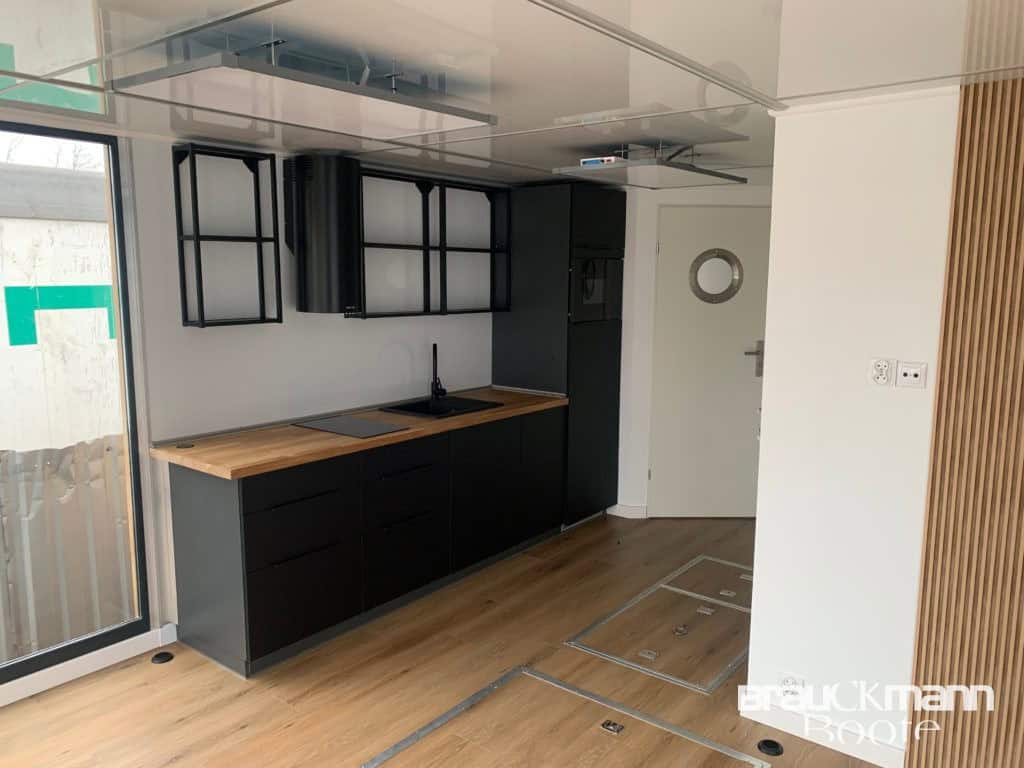

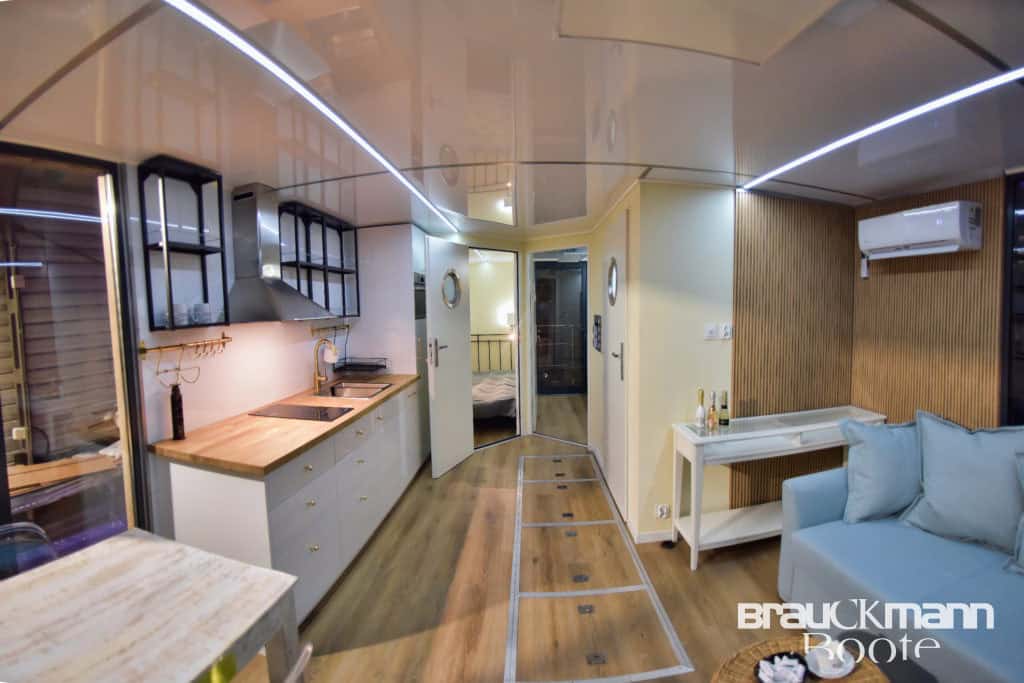

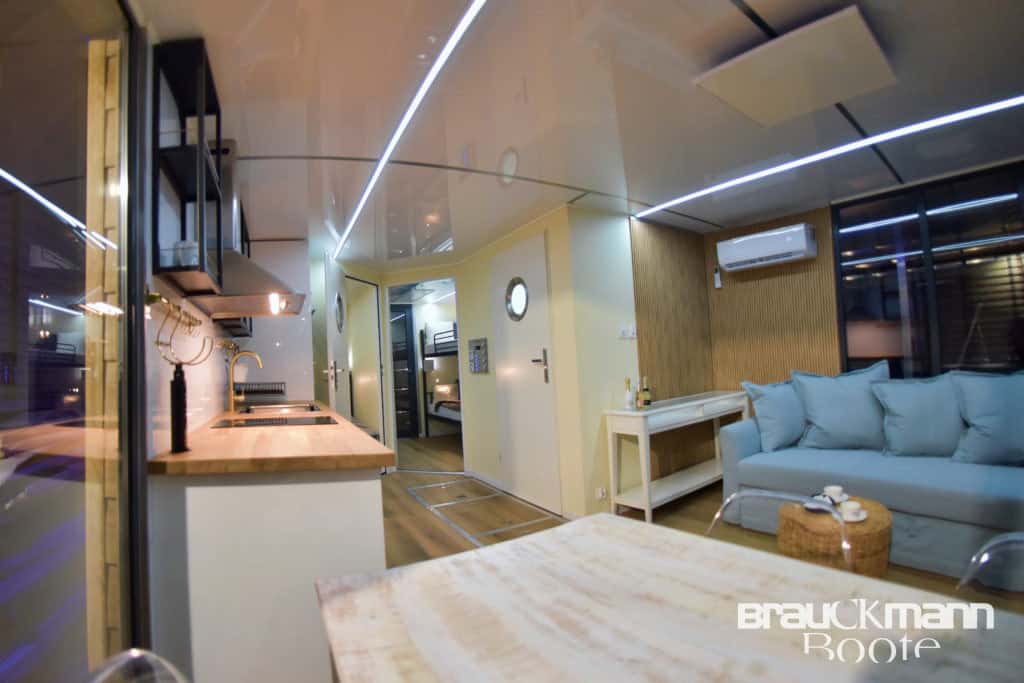

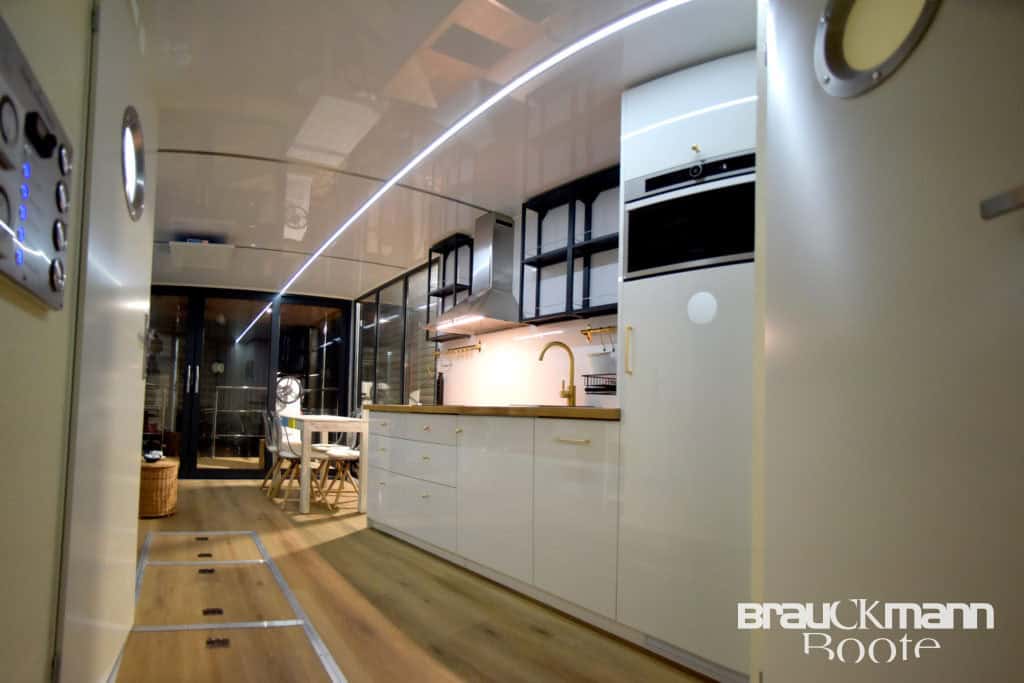

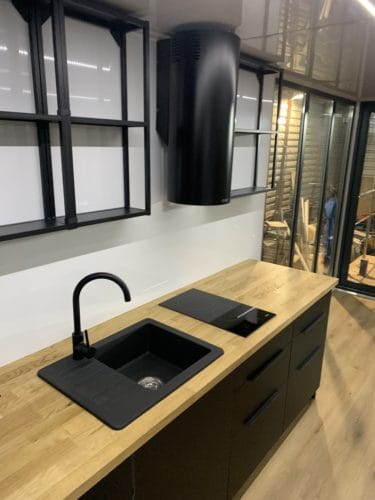

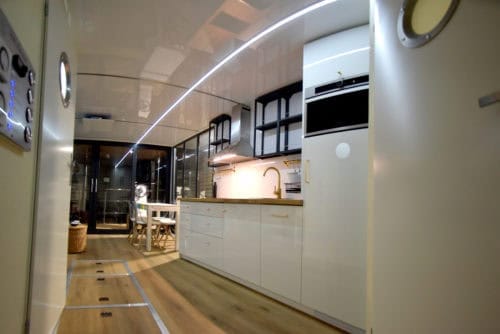

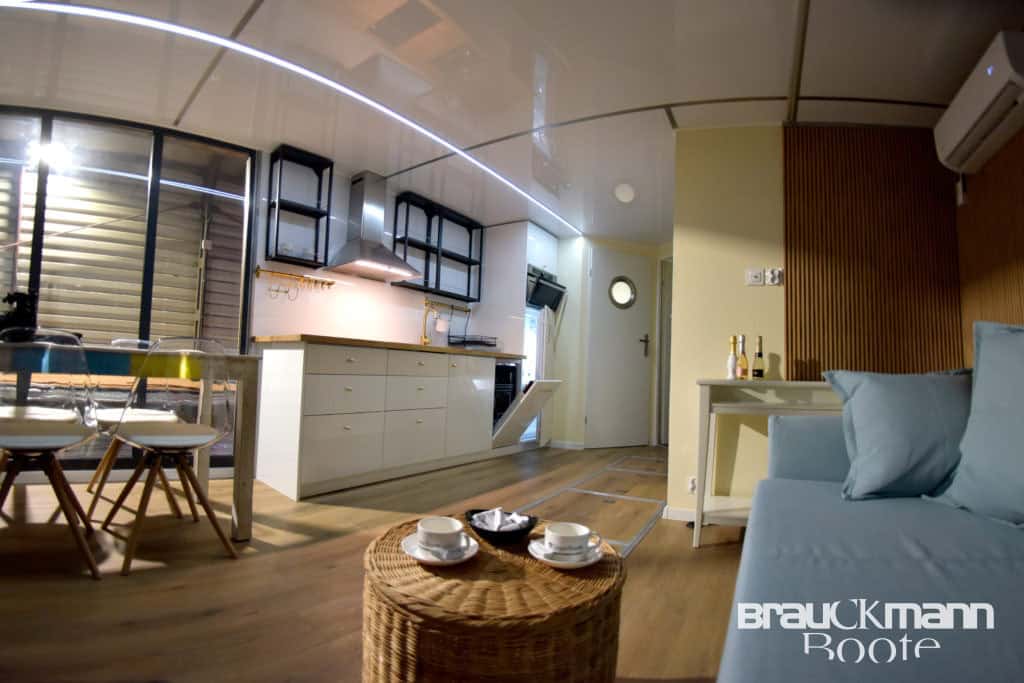

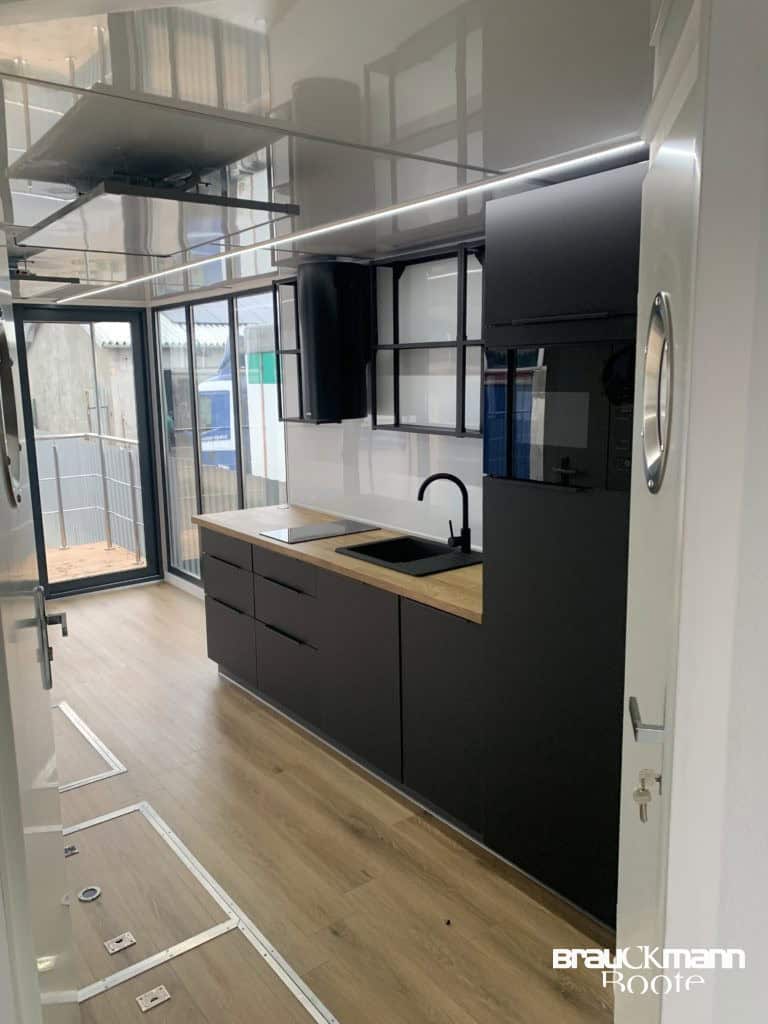

KITCHEN - built-in furniture with cabinets and countertop, 200l fridge, two-burner electric hob, kitchen hood, sink with battery

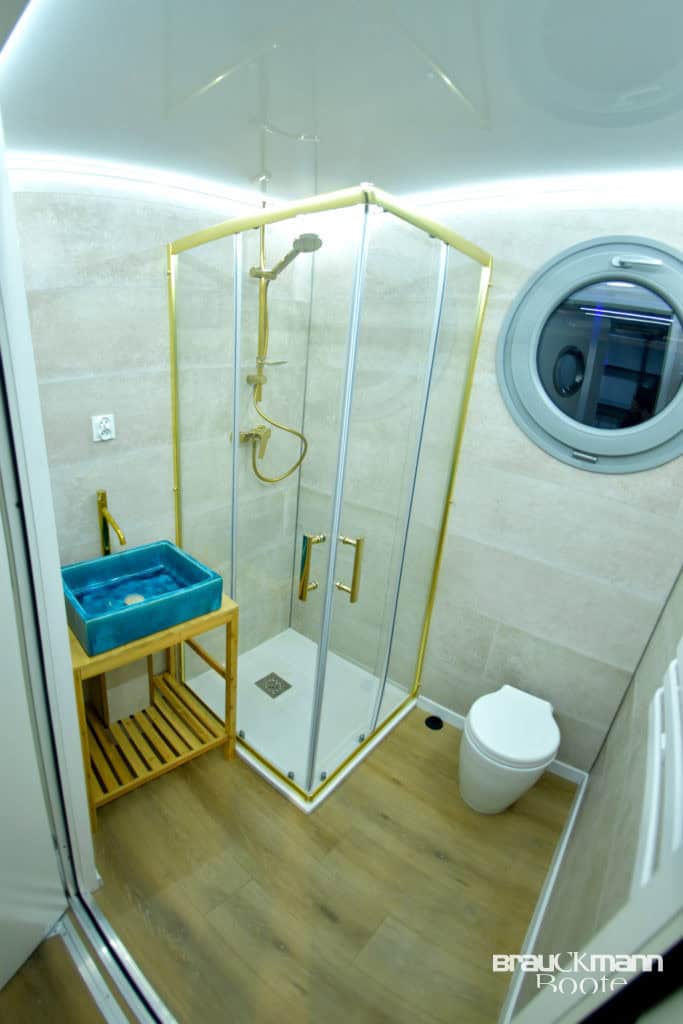

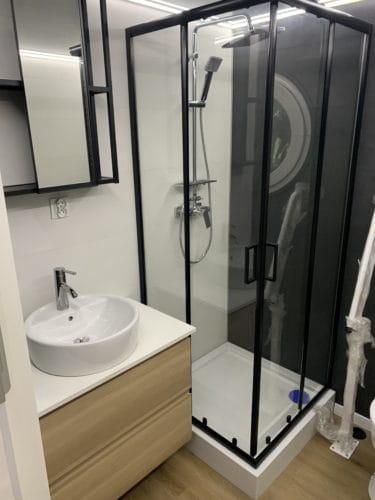

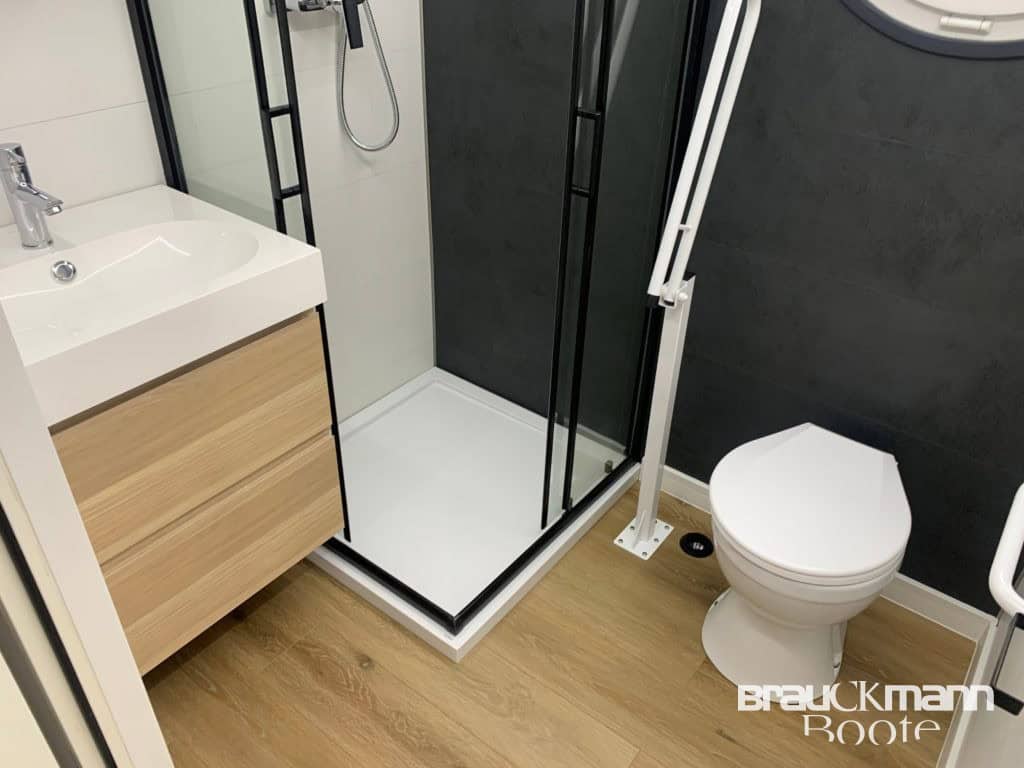

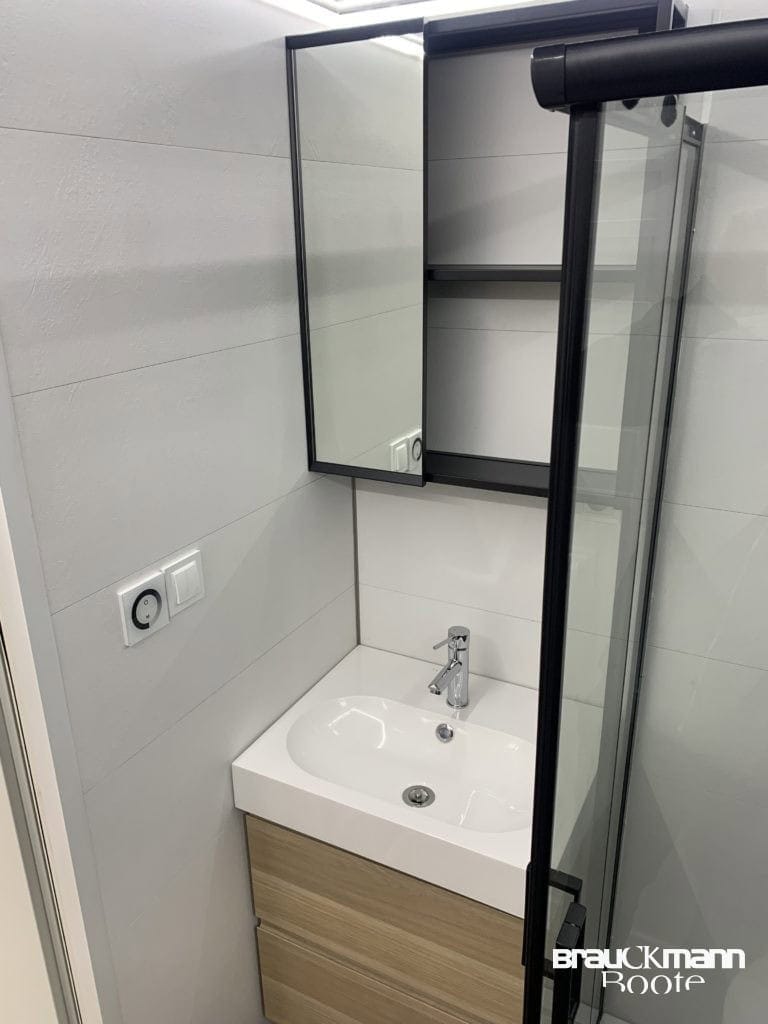

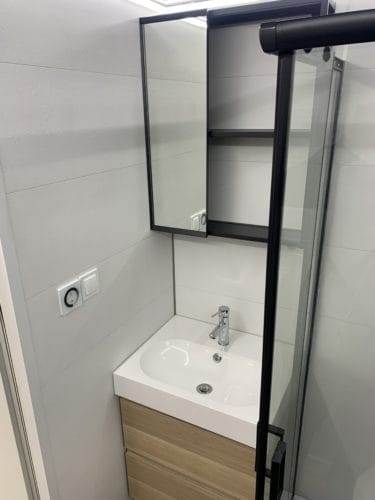

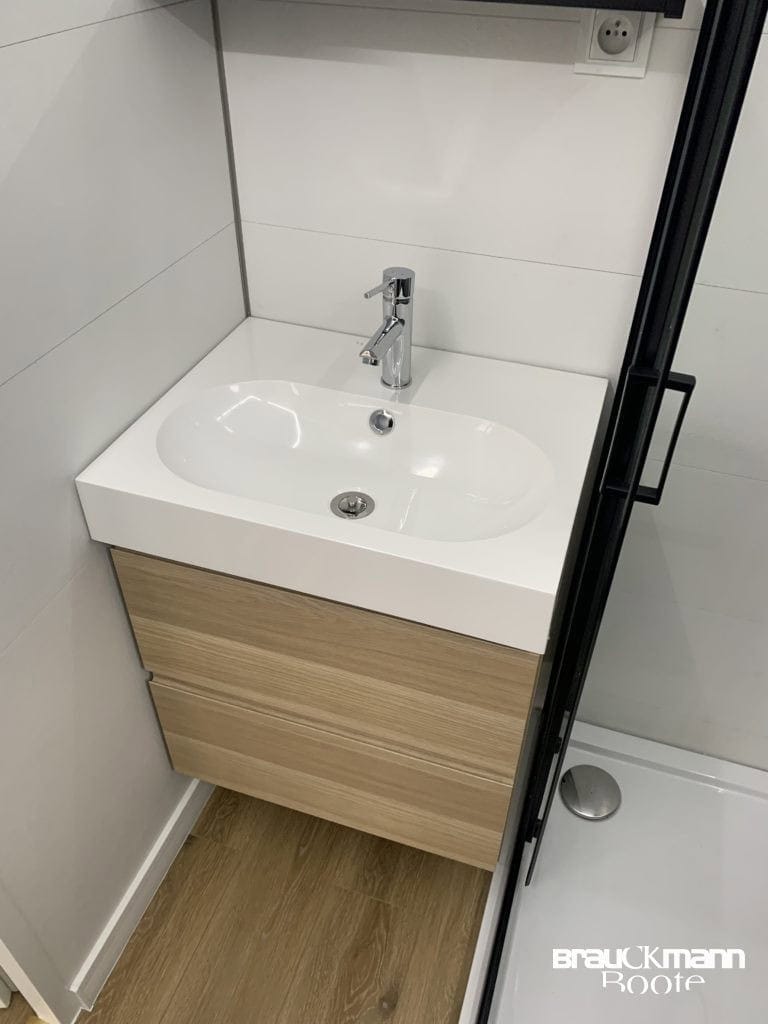

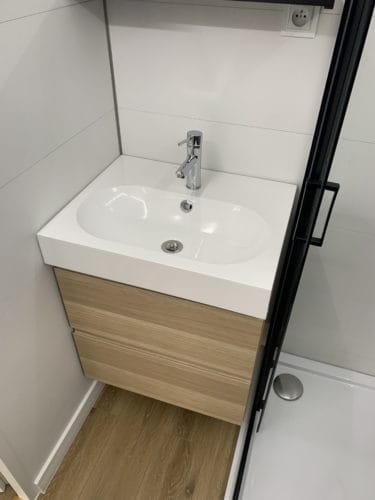

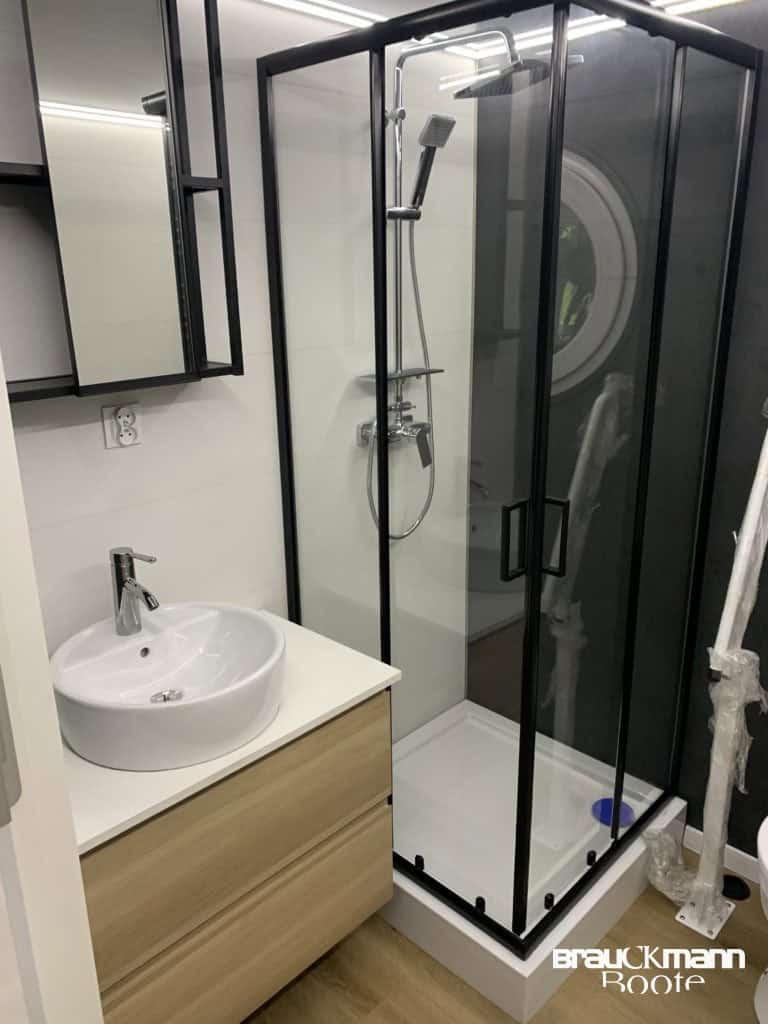

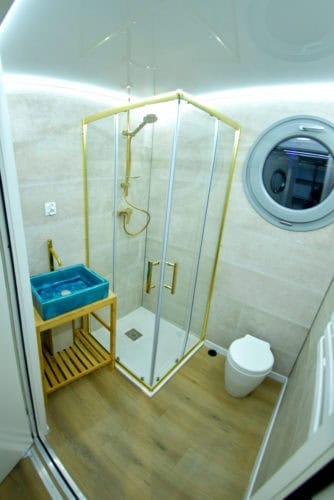

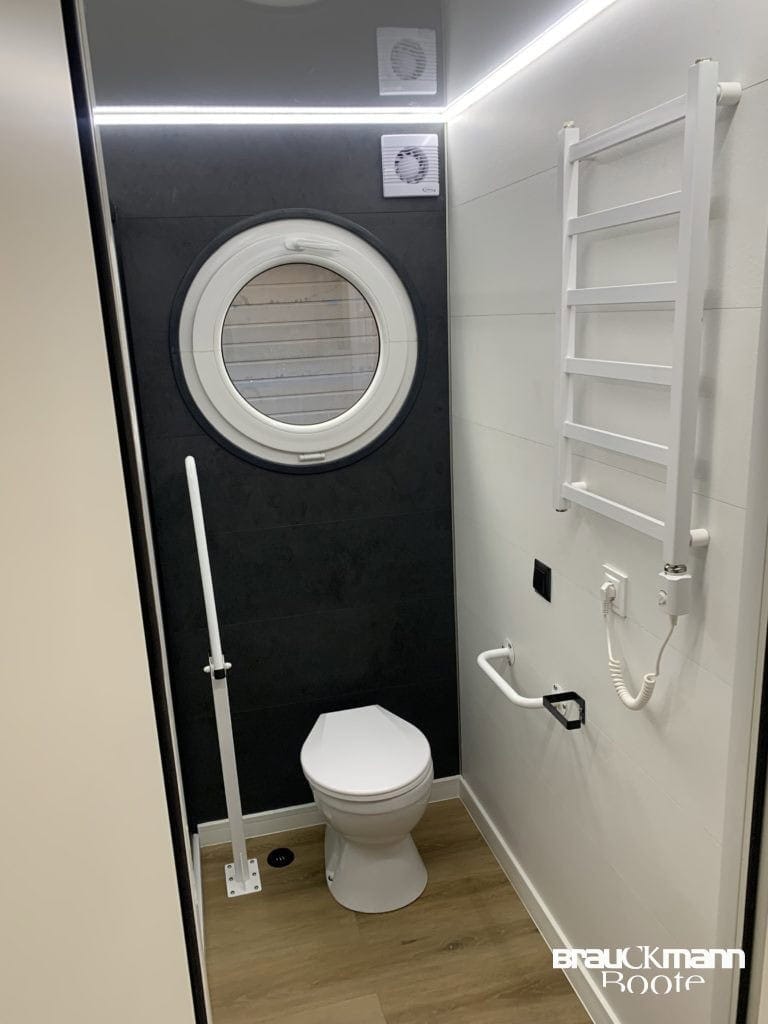

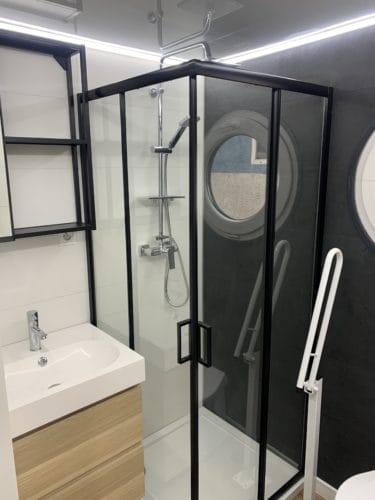

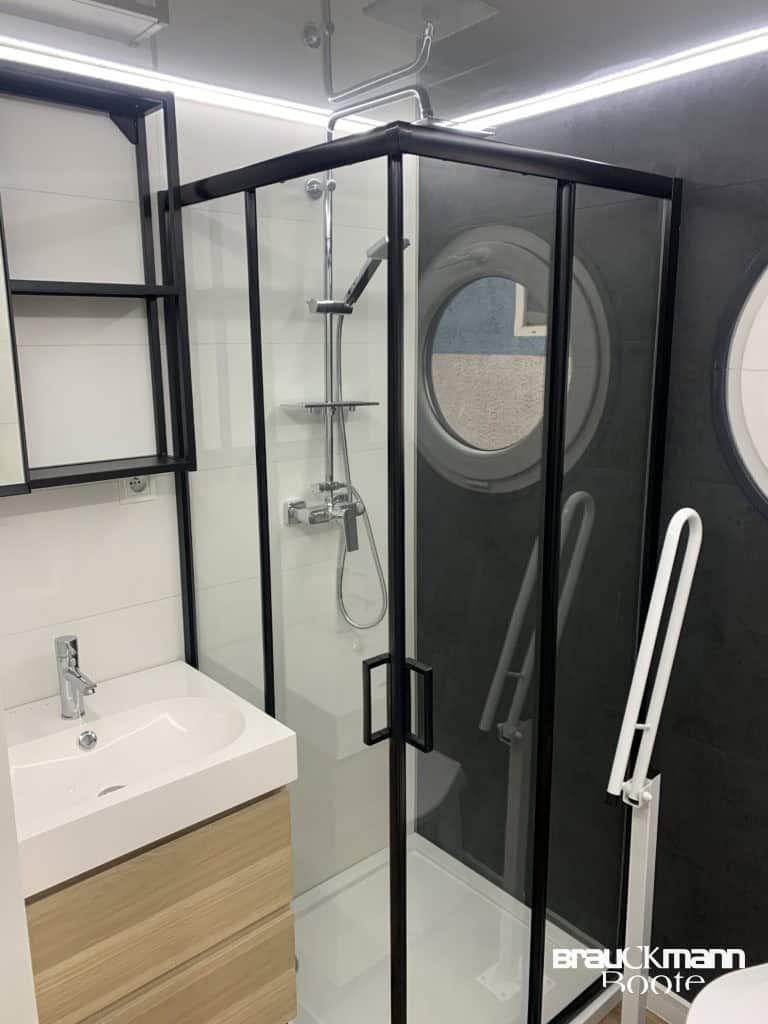

BATHROOM - washbasin cabinet, washbasin, shower + 80x80 paddling pool, shower mixer, electric heater, toilet with macerator, mirror, fanFender - wooden

MOORING CLEATS - 4 pieces

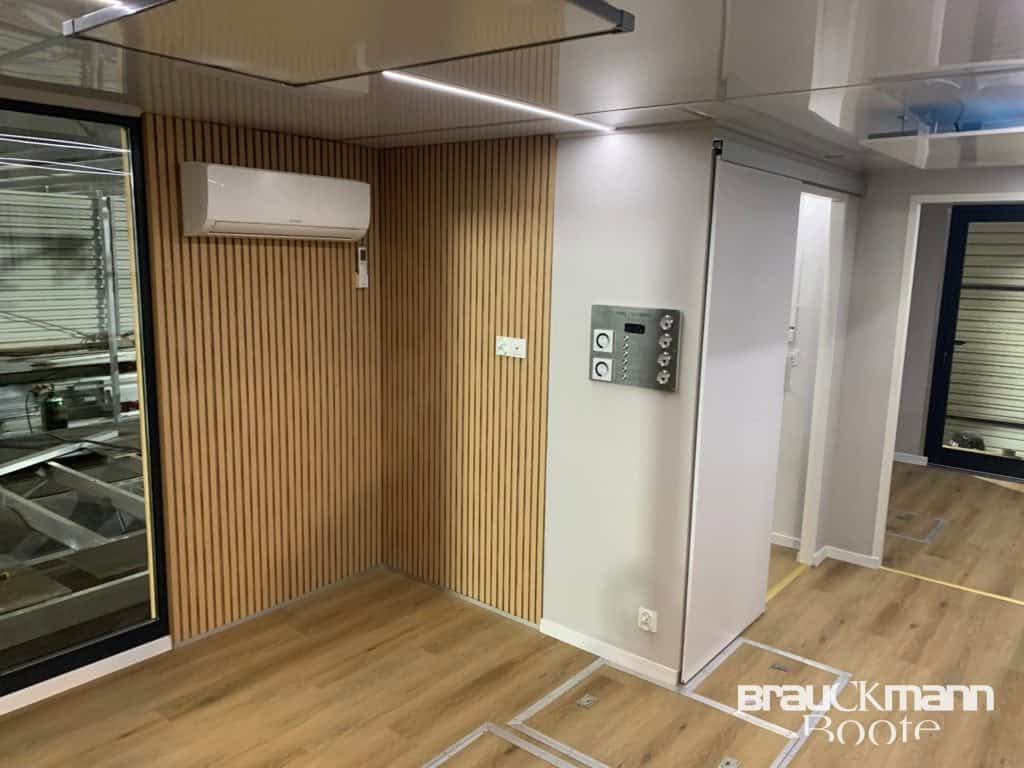

HEATING - electric radiators



FLOATING VERSION:

DRIVE - 2 x Yamaha 9.9 traction engines

FUEL TANK -100 liters + sensor + gauge

STARTER BATTERY - 100Ah AGM

WHEELHOUSE: switches, steering wheel, buttons, throttle (mounted outside or inside)PV

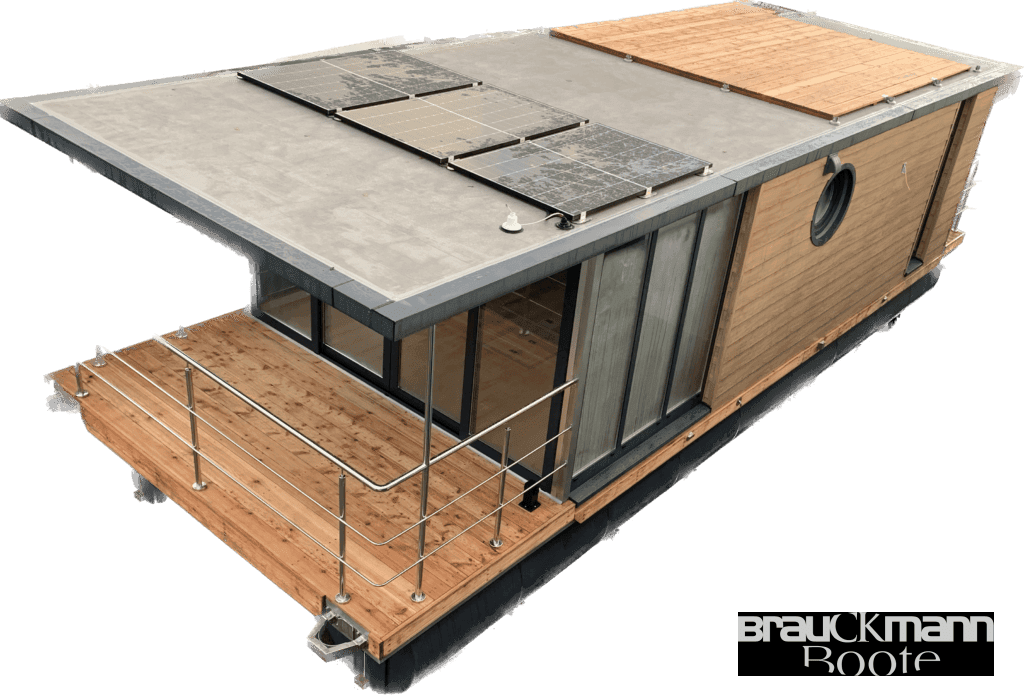

PACKAGE: 3 x 405W photovoltaic panels + charge controller

SERVICE BATTERIES: 2 x 250Ah AGMINVERTER - 12V / 230V, 3kW/9kW

NAVIGATION LIGHTING

SOUND SIGNAL

REAR CAMERA + 7” MONITOR

4 FEEDERS + HANDLE + 2 x MOORING ROPE 8m each



ADDITIONAL EQUIPMENT:

- PLANAR 4kW FLOW HEATING

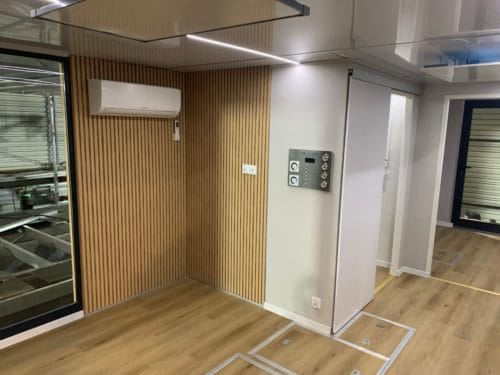

- AIR CONDITIONER 3.5kW

- SHUTTERS/PLATES for windows and doors

- DISHWASHER

- MICROWAVE

- OVEN

- BIOLOGICAL TREATMENT PLANT ETRON 50, 165l in operation / 50l per day

- BIOLOGICAL FLOW TREATMENT PLANT 500l

- DRINKING WATER TREATMENT STATION 2880l/d, 120l/h

- BOW SEARCH LIGHT

- EXTERNAL LED LIGHTING / BLUE, left side + right side

- ADDITIONAL Cleats - 2 pieces



ALL YEAR VERSION:

WATER AND FECAL TANK - HEATED

HOSES AND PIPES - HEATED



EMERGENCY KIT:

2 x RESCUE WHEEL

2 x FIRE EXTINGUISHERS

6 x VESTS

FIRST AID KIT

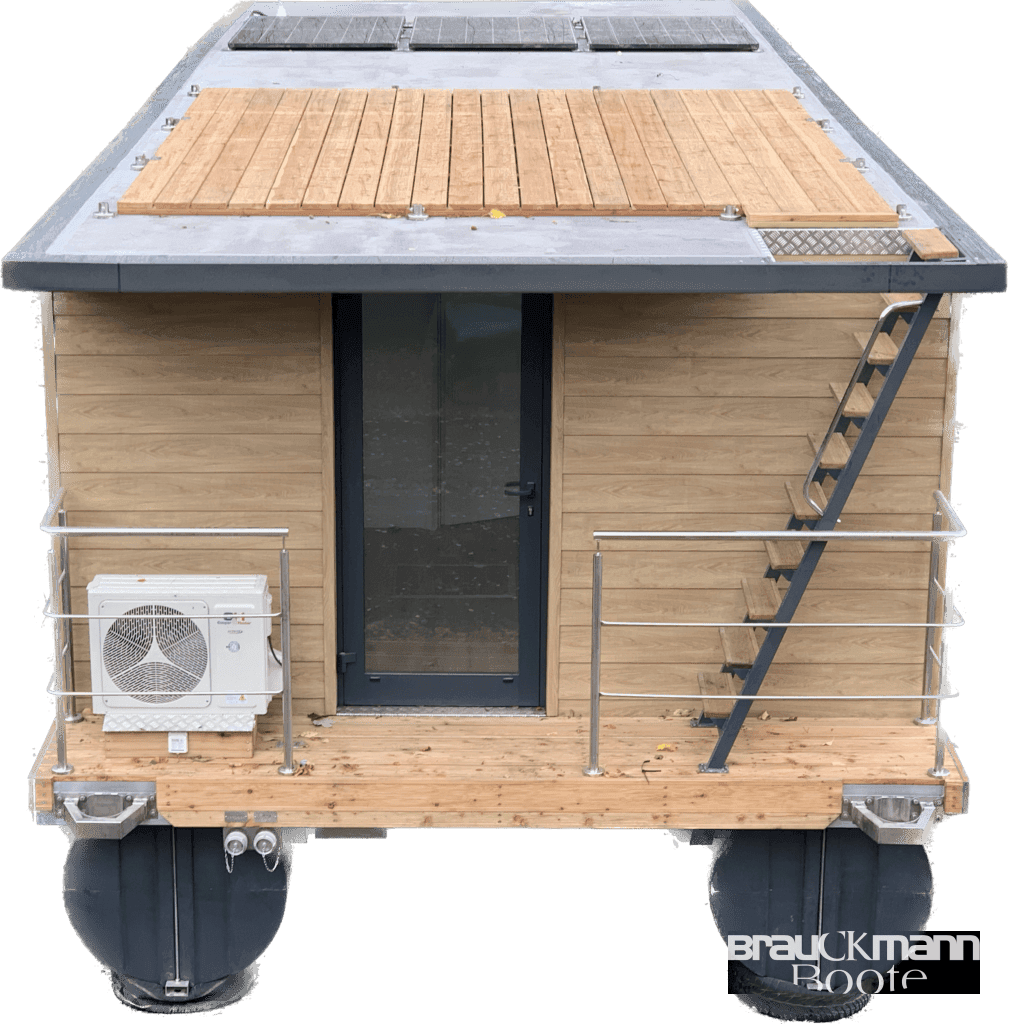

TERRACE PLUS SET:

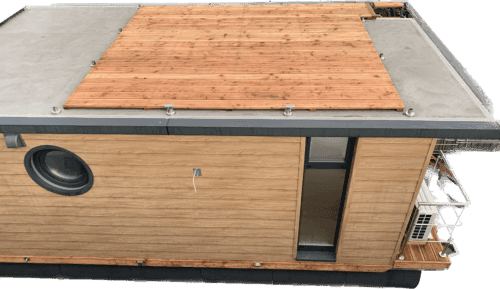

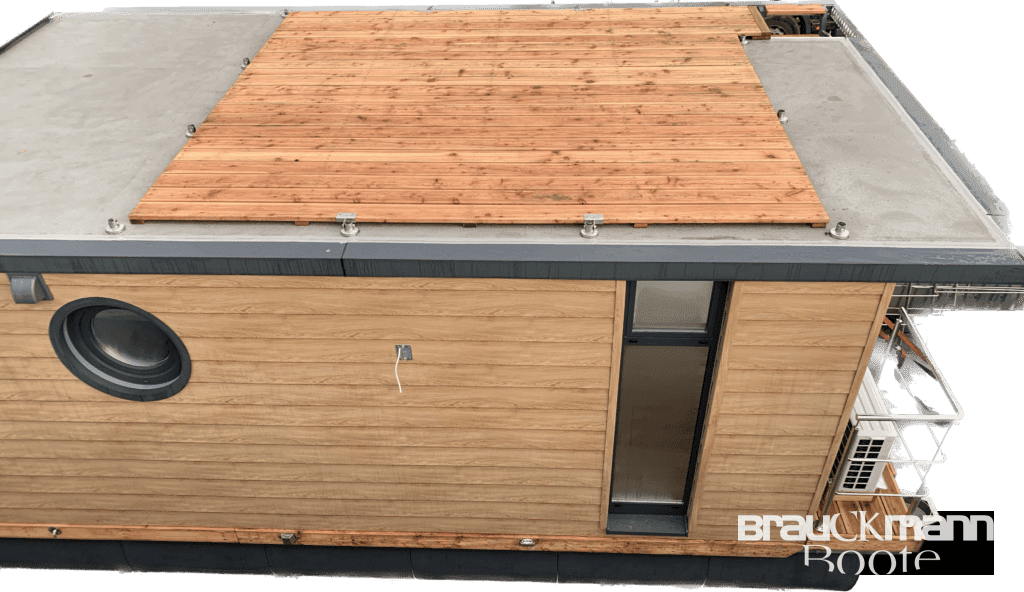

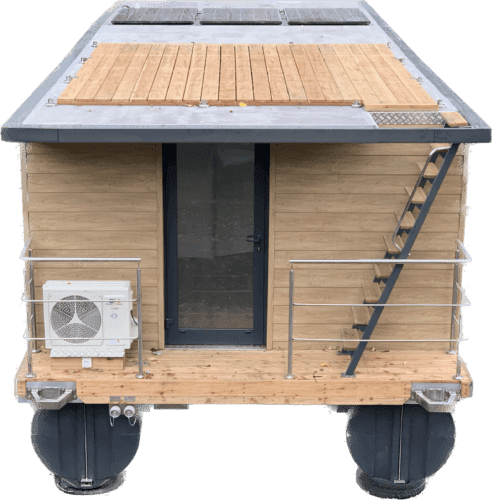

UPPER LEISURE TERRACE - area 16m2

REINFORCED ROOF STRUCTURE

RAILINGS - made of stainless steel 304, height 1 meter

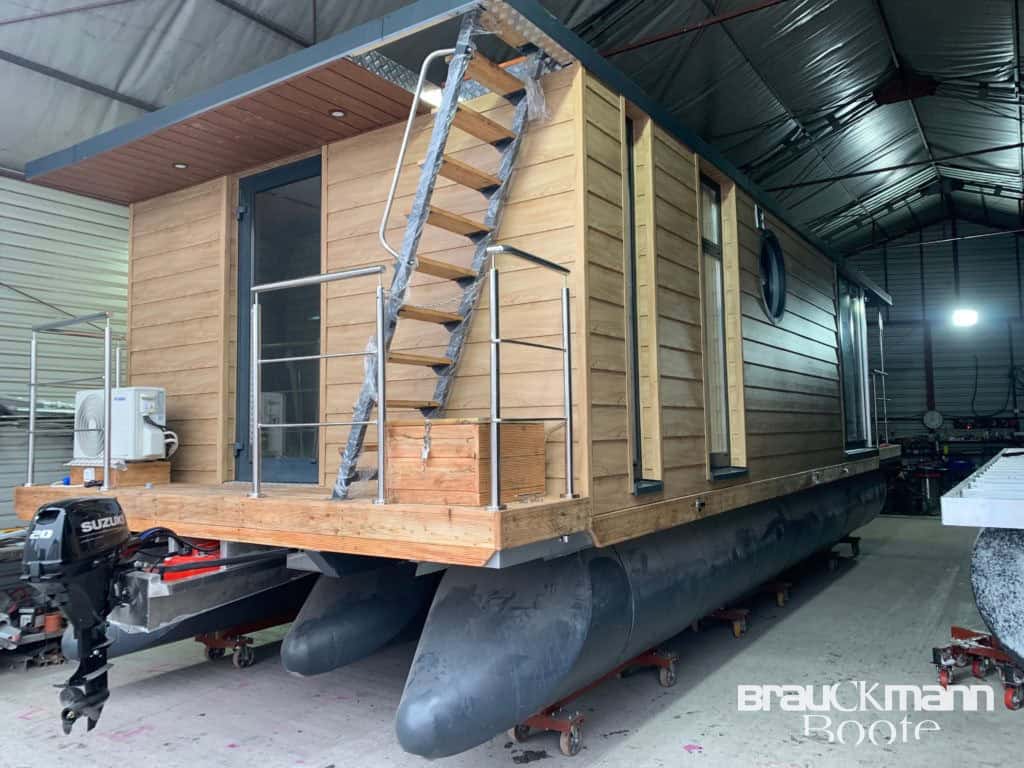

STAIRS - aluminum + Siberian larch steps + 304 stainless steel entrance railing

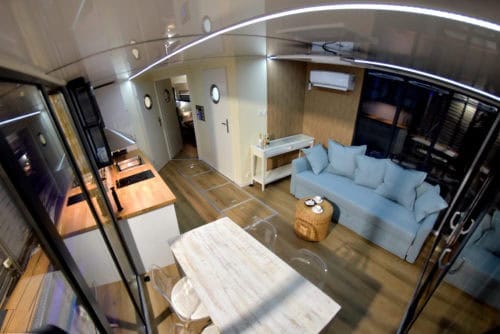

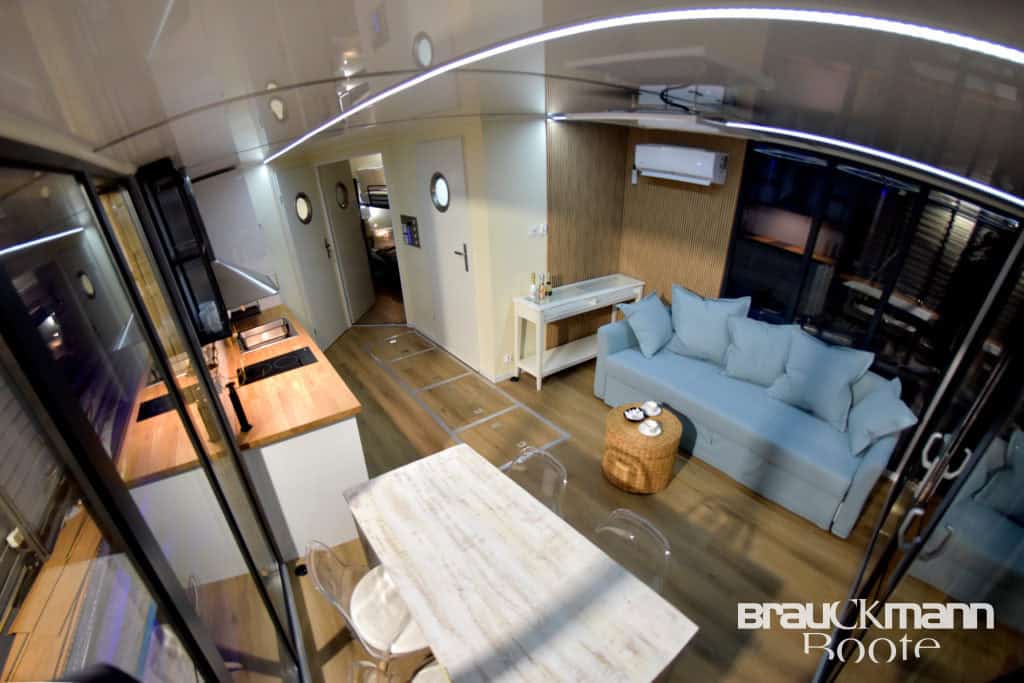

LOUNGE SET:

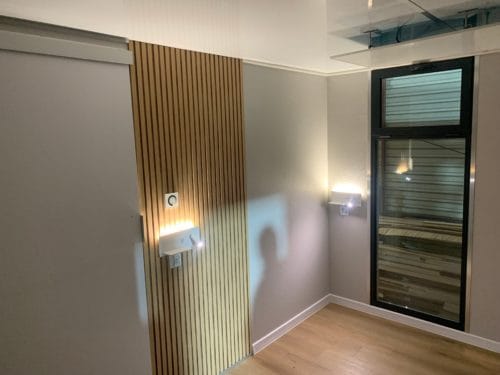

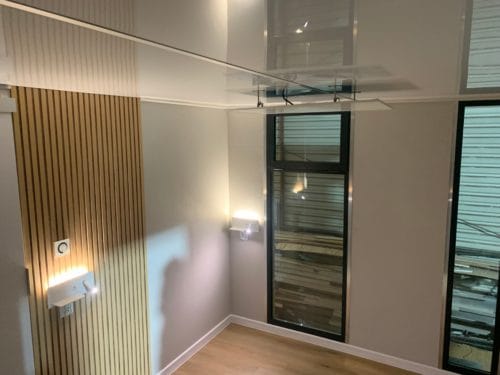

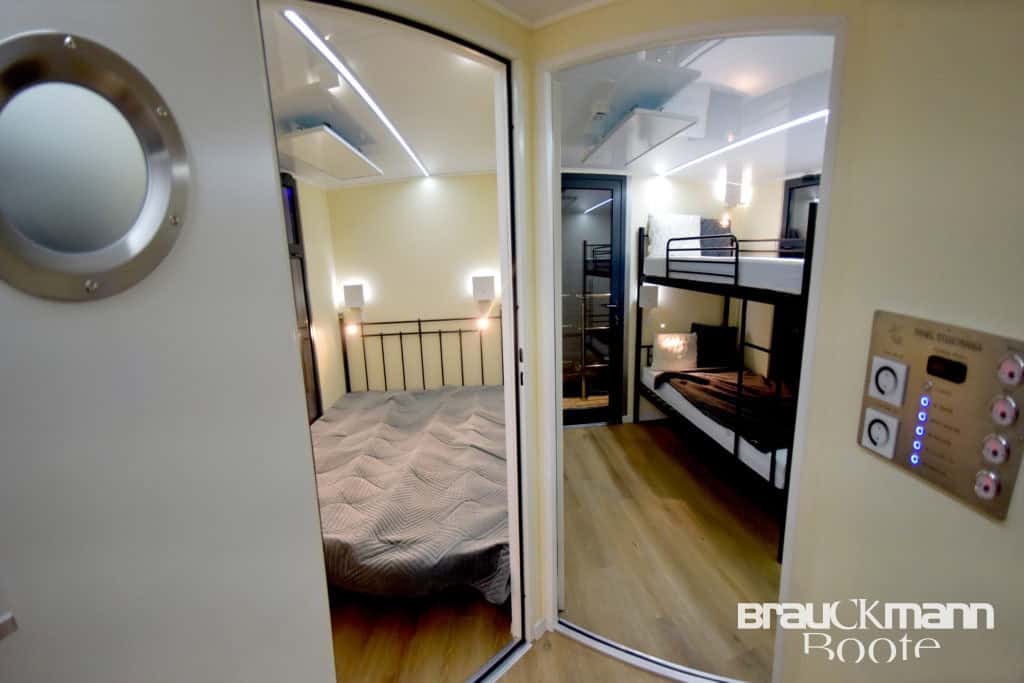

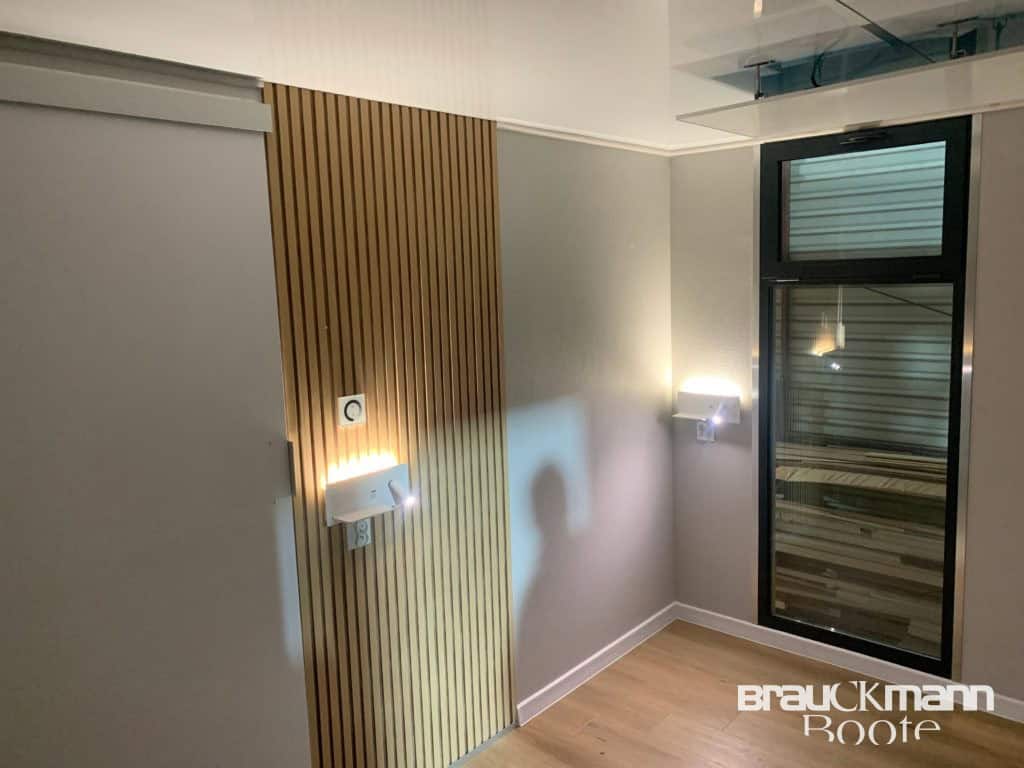

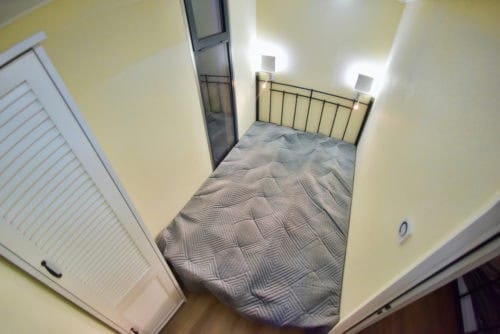

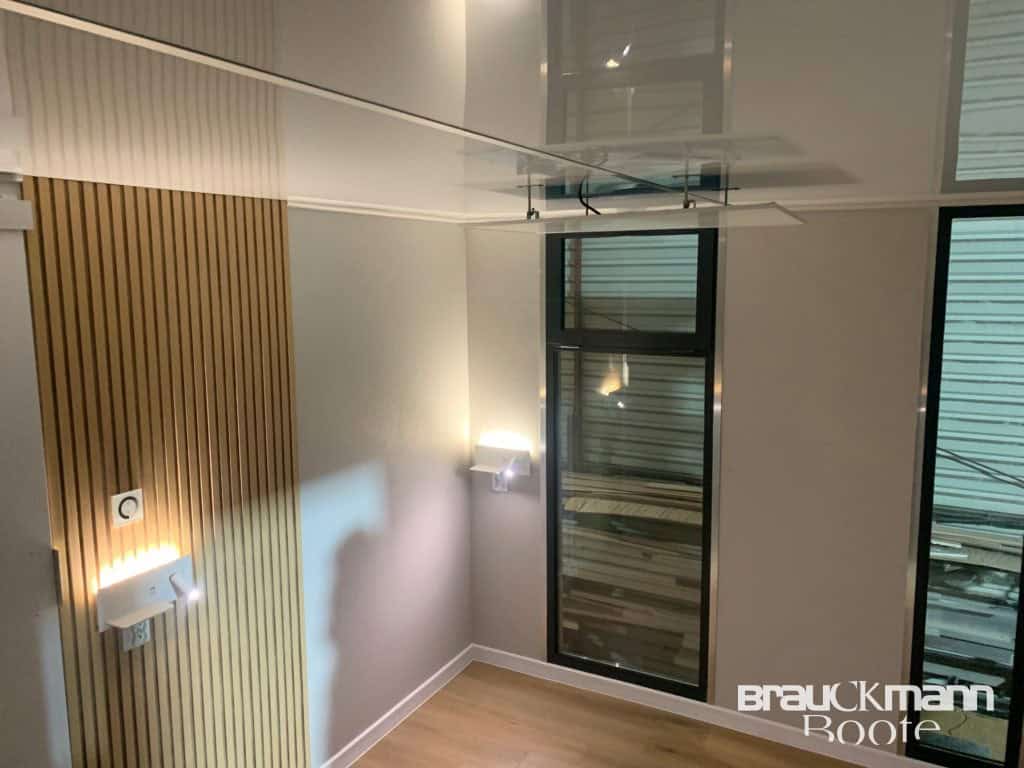

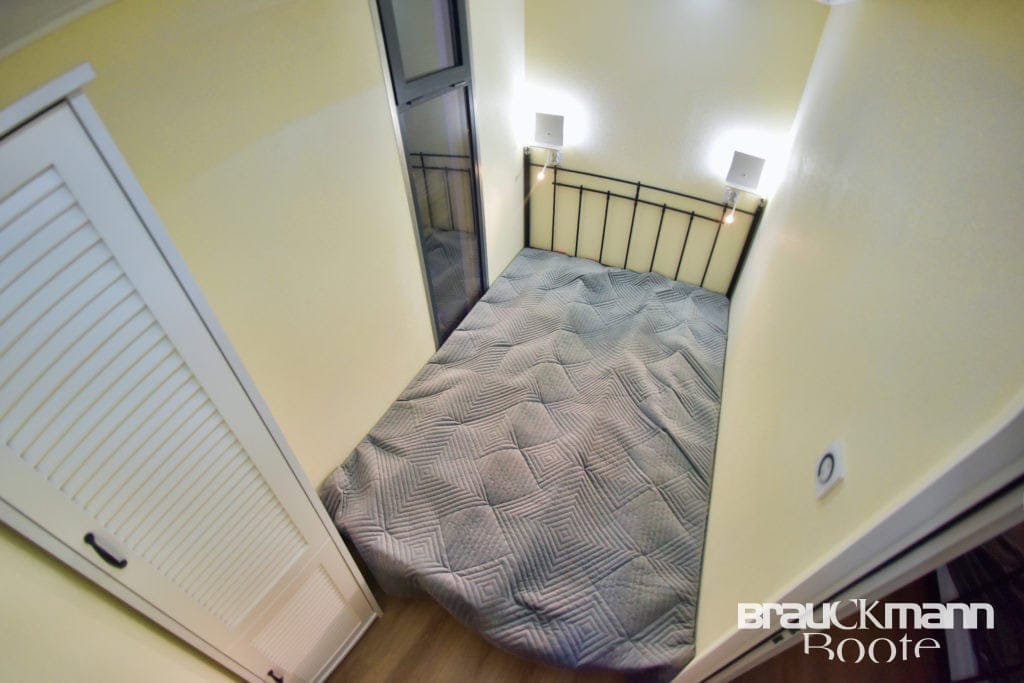

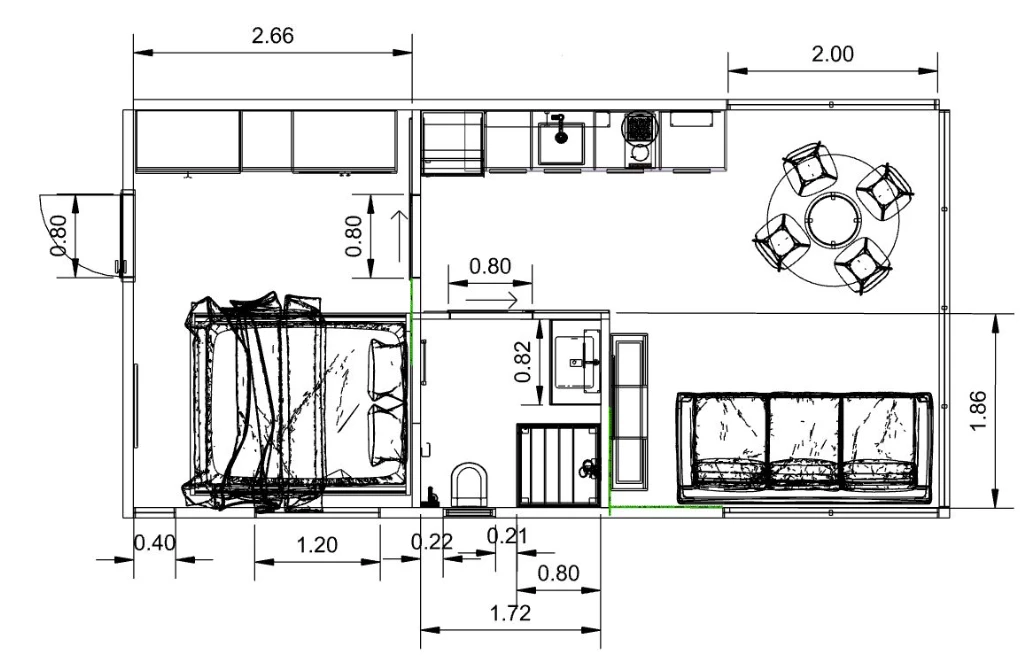

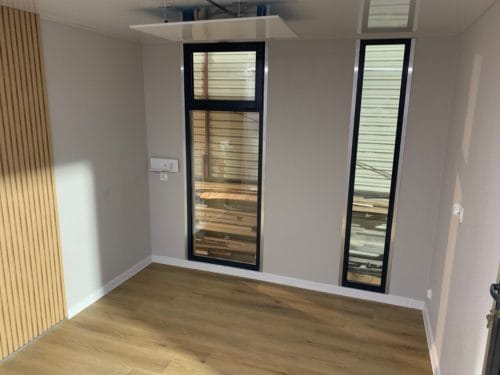

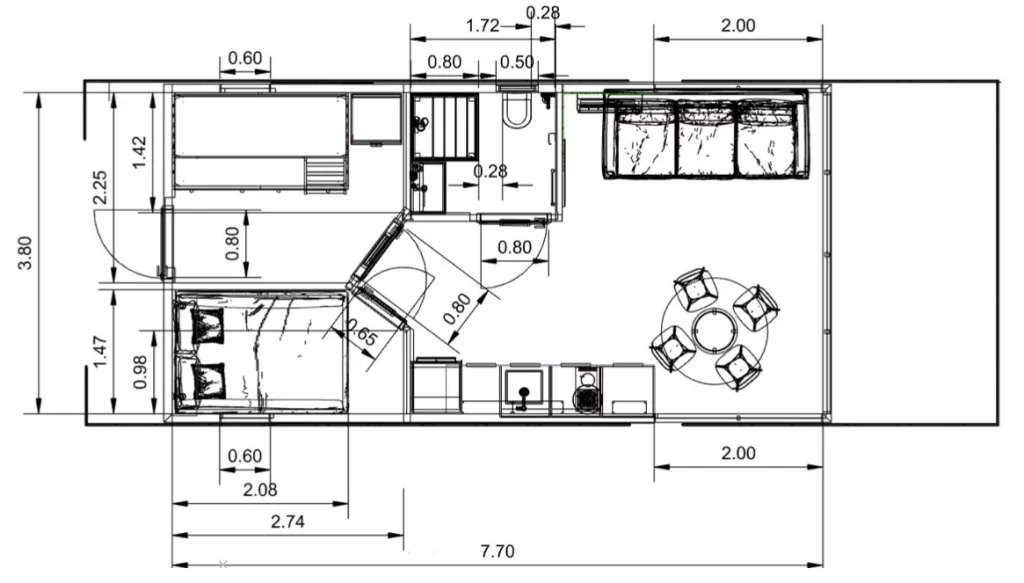

BEDROOM 1 - bed 140x200 + wardrobe

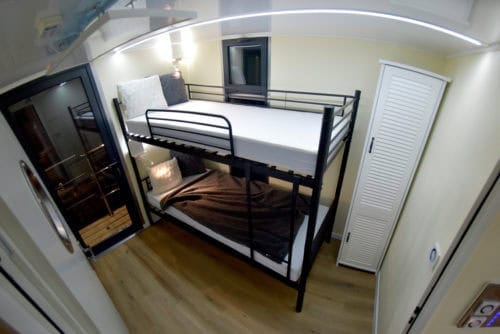

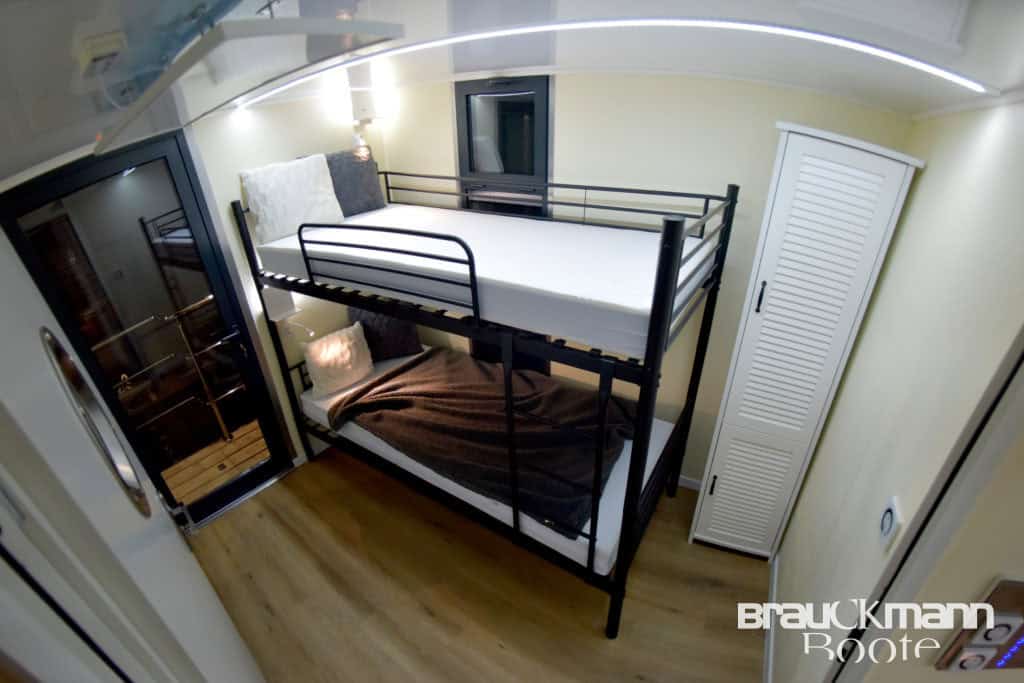

BEDROOM 2 - fold-out or bunk bed 80x200 + wardrobe

SOFA - 2 meters with sleeping option

DRESSERTABLE + 4 CHAIRS

MEDIA PLUS KIT

- TV - smart TV 42 "+ holder + TV antenna

- RADIO MP 3 + 4 speakers 100W
